High Power Cladding Power Stripper
1.0 Description
The High Power Cladding Power Stripper (CPS) is designed for high power fiber laser and amplifier applications. The device is ideal for stripping residual pump power, ASE and escaped core modes within the inner cladding of cladding fibers while preserving minimal degradation of signal power and beam quality. Reflected signal power into the inner cladding from the facet can be stripped out as well.
Features
Applications
Technical index
2.0 Optical and Operation Specifications
Item Specifications Min. Typ. Max. Unit Notes
2.01 Laser wavelength 700 - 2000 nm
2.02 Polarization Random PM Customizable
2.03 Operation regime CW
2.04 Signal insertion loss   0.05   dB
2.05 Pigtail length   1.0   m Default
2.06 Cladding power stripping ratio   20   dB
2.07 Handling power   200 350 W Bottom conduction cooling
  600 2000 W Direct water cooling
2.08 Operating temperature range 0   +75 °C
2.09 Storage temperature -40   +85 °C

Size

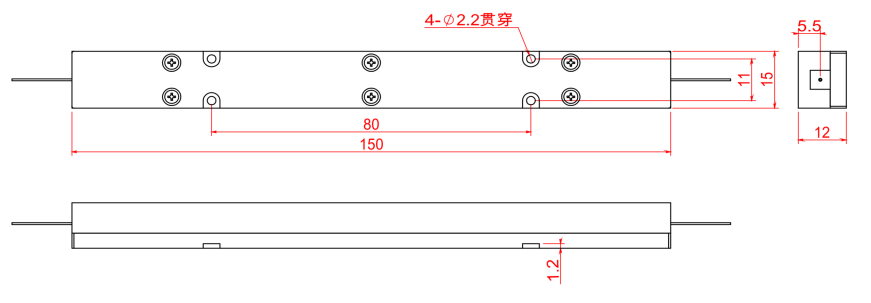

3.0 Mechanical specifications and drawings
Item Specifications Unit Notes
3.01 Module’s Dimensions 150*15*12 mm Bottom conduction cooling
3.02 φ6*120 Glass tube package
3.03 φ3*110



Series
Model explanation
4.0 Ordering information
   CNCPS---/-
   ①Fiber type    ②Power Handling    ③/Input/Output fiber length
   D03 - 10/130 DCF, 0.075NA
   D07 - 25/250 DCF, 0.06NA
   D08 - 30/250 DCF, 0.06NA
   D11 - 25/300 DCF, 0.06NA
   D12 - 20/400 DCF, 0.06NA
   D15 - 50/400 NA:0.12/0.45
   T02 - 100/120/360, NA:0.22/0.46
   ect.
   200 – 200W
   600 – 600W
   1KW – 1000W
   2KW – 2000W
   etc.
   1.5 – 1.5m
   2.0 – 2.0m  Default
   3.0 – 3.0m
   ect.
   ④Package type
   A1 = Aluminum package 150*15*12mm
   G1=Glass tube package φ6*120mm
   G2 = Glass tube package φ3*110mm
   S – Specify
   For example:CNCPS-D12-200-2.0/2.0-G1        SN:252A3322001、100B3122001
