| Item | Specifications | Unit | Notes | |

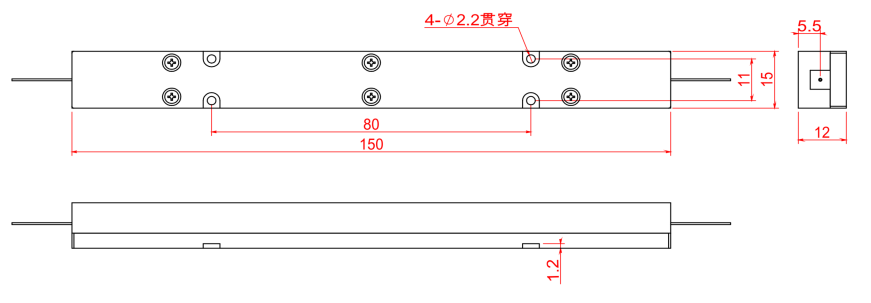

| 4.01 | Module’s Dimensions-A | 150*15*12 | mm | Bottom conduction cooling |
 |
||||
| Item | Specifications | Min. | Typ. | Max. | Unit | Notes |
| 2.01 | Pump wavelength | 800 | 1000 | nm | ||
| 2.02 | Polarization | Random | PM Customizable | |||
| 2.03 | Operation regime | CW | ||||
| 2.04 | Fiber length | 1.0 | m | Default | ||
| 2.05 | Operating temperature range | 0 | +70 | °C | ||
| 2.06 | Storage temperature | -40 | +85 | °C | ||
| 2.07 | Cooling method | Bottom conduction cooling | ||||
| Item | Confi. | Pump Fiber Type | Output Fiber Type | Pump Efficiency | Power Handling | Package |
| 3.01 | 7×1 |
106.5/125, 0.22NA 135/155,0.22NA |
220/242, 0.22NA | 95% | 200W/leg | 150*15*12 |
| 3.02 | 200/220, 0.22NA | X/400, 0.46NA | 97% | 800W/leg | 150*15*12 | |
| 3.03 | 220/242, 0.22NA | 95% | 500W/leg | 150*15*12 |
| CNMPC-①-②-③-④-⑤/⑤-⑥ | ||
| ①；Port combination | ②：Pump fiber type S-SCF,D-DCF | ③：Output fiber type |
|
7 – 7×1 |
M02 – 106.5/125, 0.22NA M03 – 135/155, 0.22NA M04 - 200/220 MMF, 0.22NA M05 - 220/242 MMF, 0.22NA ect. |
D12-20/400DCF,0.06NA M05 – 220/242 MMF, 0.22NA ect. |
| ④：Pump power per port | ⑤/⑤：Pump/Output fiber length | ⑥：Package type |
|
100 – 100W 200 – 200W 250 – 250W ect. |
1.0–1.0m Default 1.5 – 1.5m 2.0 – 2.0m ect. |
A1 = Aluminum package 150*15*12mm S – Specify |
| For example：CNMPC-7-SM04-M05-200-1.0/1.0-A1 | ||
