| Item | Specifications | Unit | Notes | |

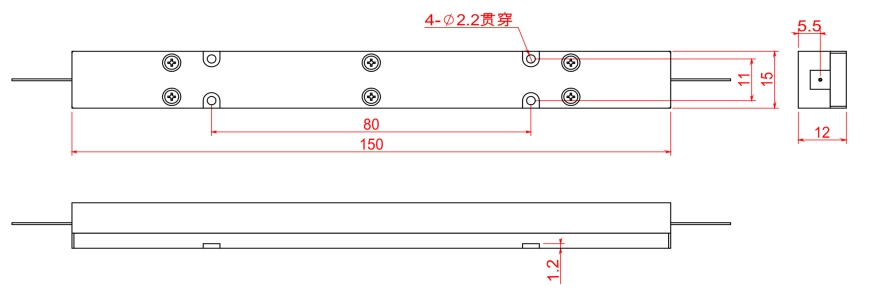

| 4.01 | Module’s Dimensions-B | 150*15*12 | mm | Bottom conduction cooling |
 |
||||
| Item | Specifications | Min. | Typ. | Max. | Unit | Notes | |
| 2.01 | Signal wavelength | 1000 | 1060 | 1100 | nm | ||
| 2.02 | Polarization | Random | PM Customizable | ||||
| 2.03 | Operation regime | CW | |||||
| 2.04 | Fiber length | 2.0 | m | Default | |||
| 2.05 | M2 | ≤5 | Customizable | ||||
| 5.5 | For 50μm Core Diameter | ||||||
| 10 | For 100μm Core Diameter | ||||||
| 2.06 | Operating temperature range | 0 | +70 | °C | |||
| 2.07 | Storage temperature | -40 | +85 | °C | |||
| Item | Configuration | Input Fiber Type | Output Fiber Type | Power Handling | Efficiency |
| 3.01 | 3×1 | X/250 DCF, NA:0.06/0.46 | 100/120/360, NA:0.22/0.46 | 5kW/leg | >96% |
| 3.02 | 7×1 | X/250 DCF, NA:0.06/0.46 | 100/120/360, NA:0.22/0.46 | 3kW/leg | >96% |
| PFC-①-②-③-④-⑤/⑤-⑥ | ||
| ①：Port combination | ②：Input fiber type | ③：Output fiber type |
|
3 – 3×1 7 – 7×1 |
D06–20/250DCF,0.06NA D07 – 25/250 DCF, 0.06NA ect. |
T01 – 100/120/360, NA:0.22/0.46 ect. |
| ④：Handling power per port | ⑤/⑤：Input/Output fiber length | ⑥：Package type |
|
3KW – 3.0Kw 5KW – 5.0Kw ect. |
1.5 – 1.5m Default 2.0 – 2.0m 3.0 – 3.0m ect. |
A1 = Aluminum package 150*15*12mm |
| For example：PFC-3-D07-T01-3KW-1.5/1.5-A1 | ||
