HAPM4000 is a Polarization Maintaining Optical Amplifier which working in 1528~1563nm operating wavelength. Adopt Polarization Maintaining Erbium-doped fiber (PM-EDF), output optical power range 13~26dBm, extinction ratio >20dB.

HAPM4000 input and output both adopt single-polarized optical isolator and PM optical component. This equipment is used to ensure the high extinction ratio and the stability of amplified output polarization. Mainly maintained by narrow linewidth, single channel seed laser source‘s power amplification and PM in 1540~1570nm wavelength range.

◉ Single mode, TEM00 Gaussian spectrum, linear polarization output

◉ Keep single channel seed light source linewidth, frequency stability and RIN

◉ High extinction ratio

◉ Low noise figure

◉ Stable output polarization

◉ High power stability

◉ Single-polarized input/output optical isolation

◉ Input output and echo reflection monitoring function, offer automatic system protection

◉ ACC, APC working mode

◉ RS232 control interface

◉ SNMP network management function, support remote control

◉ Rack-mounted type, desktop type, modular type (OEM) optional

◉ Excellent P/P ratio

◉ Narrow linewidth, single channel seed laser source regeneration amplification

◉ Laser radar

◉ Optical fiber sensing

◉ Spectral analysis

◉ Coherent detection

◉ Frequency generation

◉ Coherent combination high precision

Performance			Index			Supplement
Performance			Min.	Typ.	Max.	Supplement
Optic feature	Operating wavelength range	(nm)	1528		1563
	Work mode		CW
	Polarization output		Linear polarization
	Optical quality		Single mode, TEM₀₀
	Input optical power	(dBm)	-10		+10
	Output optical power	(dBm)	13		26
	Output power adjustable range	(%)	10		100
	Output power stability	(dB)			0.2	8 hours
	Extinction ratio	(dB)	15	20
	Noise figure	(dB)		5.0
	Input/output optical isolation	(dB)	30
	Optical return loss	(dB)	50
	Optical connector		FC/APC
General feature	SNMP network management interface		RJ45
	Communication interface		RS232
	Power supply	(V)	90	220	265	AC, stander type, desktop type
	Power supply	(V)	30	-48	72	DC, stander type
	Power consume	(W)			60
	Operating temp.	(°C)	-5		65
	Store temp.	(°C)	-40		80
	Relative humidity	(%)	5		95
	Size(W) × (D) × (H)	(mm)	483 × 363 × 44			1U stander type
			483 × 373 × 89			2U stander type
			279 × 356 × 89			2U desktop type
			279 × 356 ×133			3D desktop type
			125×150×31			modulator type OEM

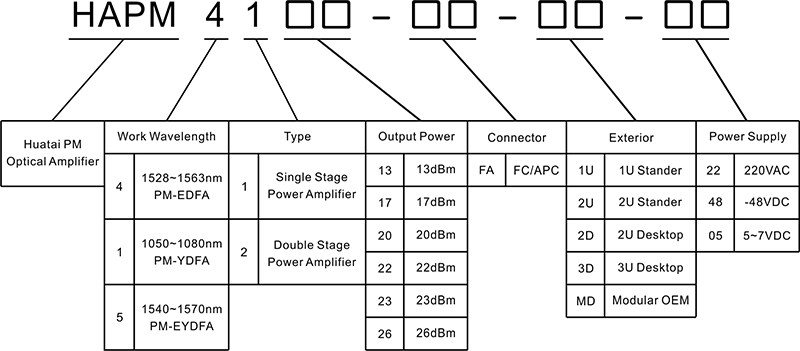

Model	Operating wavelength	Type	Output optical power	Optical connector
HAPM4113- FA	1528~1563nm PM-EDFA	Single stage power amplifier	13dBm	FC/APC
HAPM4117-FA			17dBm
HAPM4120-FA			20dBm
HAPM4122-FA			22dBm
HAPM4123-FA			23dBm
HAPM4126-FA			26dBm
