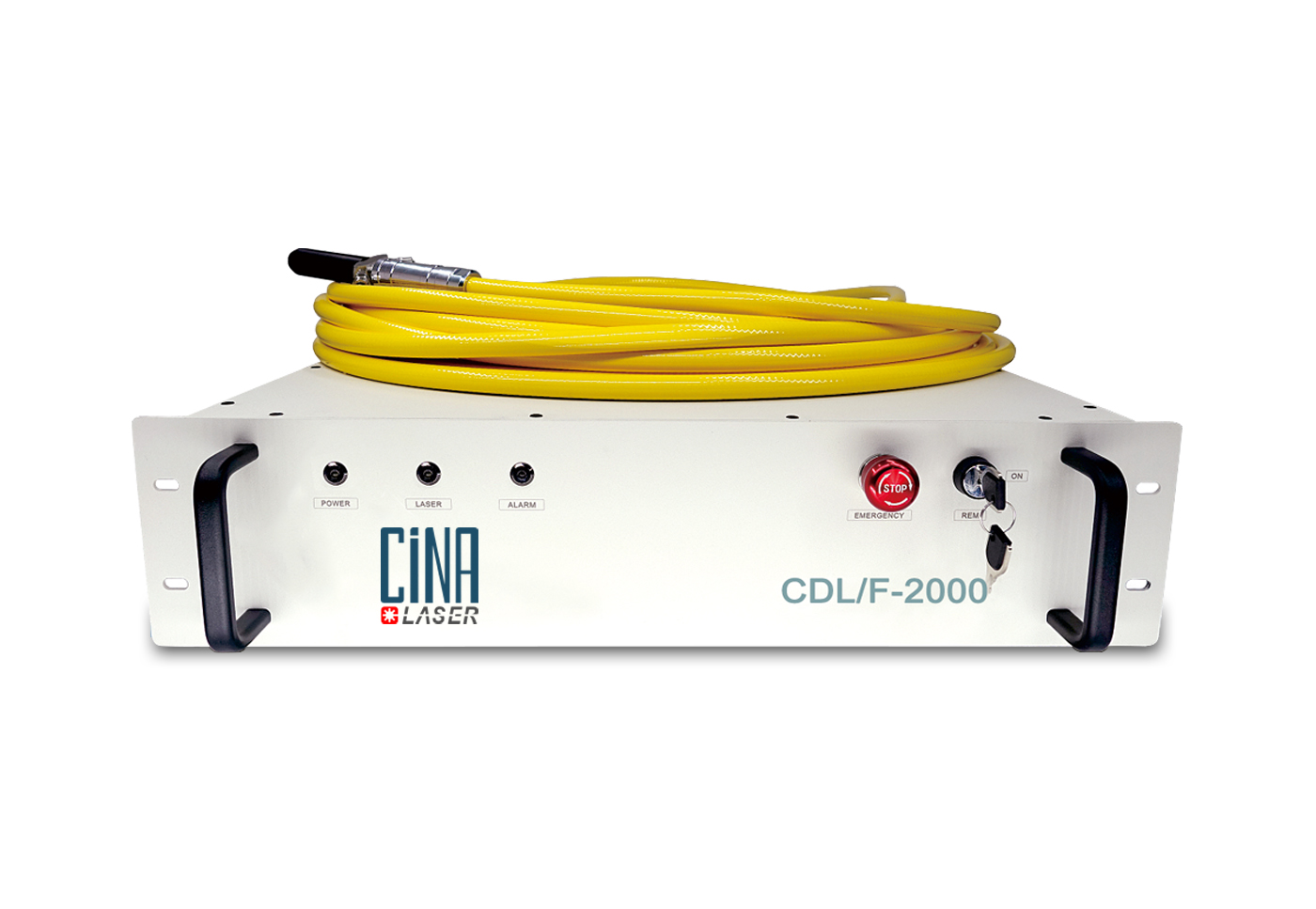

CDL/F 500W~4000W

Fiber Output Direct Diode Laser
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail

Description
CDL / F- 500W~4000W series fiber output direct diode laser, with higher electro-optic conversion efficiency, and more competitive price. Laser through fiber flexible output, more suitable for portable, or intelligent equipment integrated applications, suitable for stainless steel, carbon steel, aluminum, copper and other metal materials cladding, welding, drilling. It is widely used in the fields of sheet metal welding, metal processing, home appliance manufacturing and automobile manufacturing.
Features
 High electro-optic conversion efficiency>45%, greatly reduce production costs
 Short wavelength, metal has a higher absorption rate for short-wavelength lasers
 Can accommodate welding, cladding and surface heat treatment at the same time
 High lifetime, high safety and reliability
 Can be personalized customization
 Excellent after-sales service system
 Excellent cost performance
Applications
 Laser welding
 Laser cladding
 Laser brazing
 Laser melting deposition
Size
Series
Technical Index
Performance Min. Typ. Max. Remarks
Optical Feature Central wavelength (nm) 965 975 985 975nm
910 920 930 920nm
Spectral bandwidth(-3dB) (nm)   3 5
Output optical power (W) 500

    CDL/F-500
1000     CDL/F-1000
1500     CDL/F-1500
2000     CDL/F-2000
2500     CDL/F-2500
3000     CDL/F-3000
4000     CDL/F-4000
Power ADJ. range (%) 10   100
Output power stability (%)   1 1.5 100% continuous>1h
  2 3 100% continuous>24h
Beam quality BPP (mm x mrad) 20   28 500W~1500W
38   40 1500W~2500W
40   45 3000W~4000W
Modulation frequency (KHz)     20 100% output
Red light power (mW) 0.3   1.0
Output Feature Output connector     QBH   Customizable
Output fiber core diameter (μm)   400   500W~2500W
  600   3000W~4000W
Output fiber length (m) 5 10 15 Customizable
Output fiber bending radius (mm) 200
Work mode   Continuous/Modulation CW/Modulate
State of polarization   Random Random
Electrical Cooling Feature Communication interface   RS232 / AD / Super terminal
Remote telecommunication   APP Customizable
Power supply (V) 200 220 240
Power consumption (KW)     1.1 500W
    2.2 1000W
    3.3 1500W
    4.4 2000W
    5.5 2500W
    6.6 3000W
    8.8

4000W
Cooling mode   Water cooling Circumscribed
Temperature of cooling water (°C) 21   25
General Feature Working ambient temperature (°C) 10   40
Working ambient humidity (%) 10   85
Storage temperature (°C) -10   60
Weight (kg)   63
Structure   19’ Rack
Size (W) × (L) × (H) (mm) 482.6 ×451×104 500W~2000W
482.6 ×596×111 2500W~3000W
482.6 ×666×111 4000W

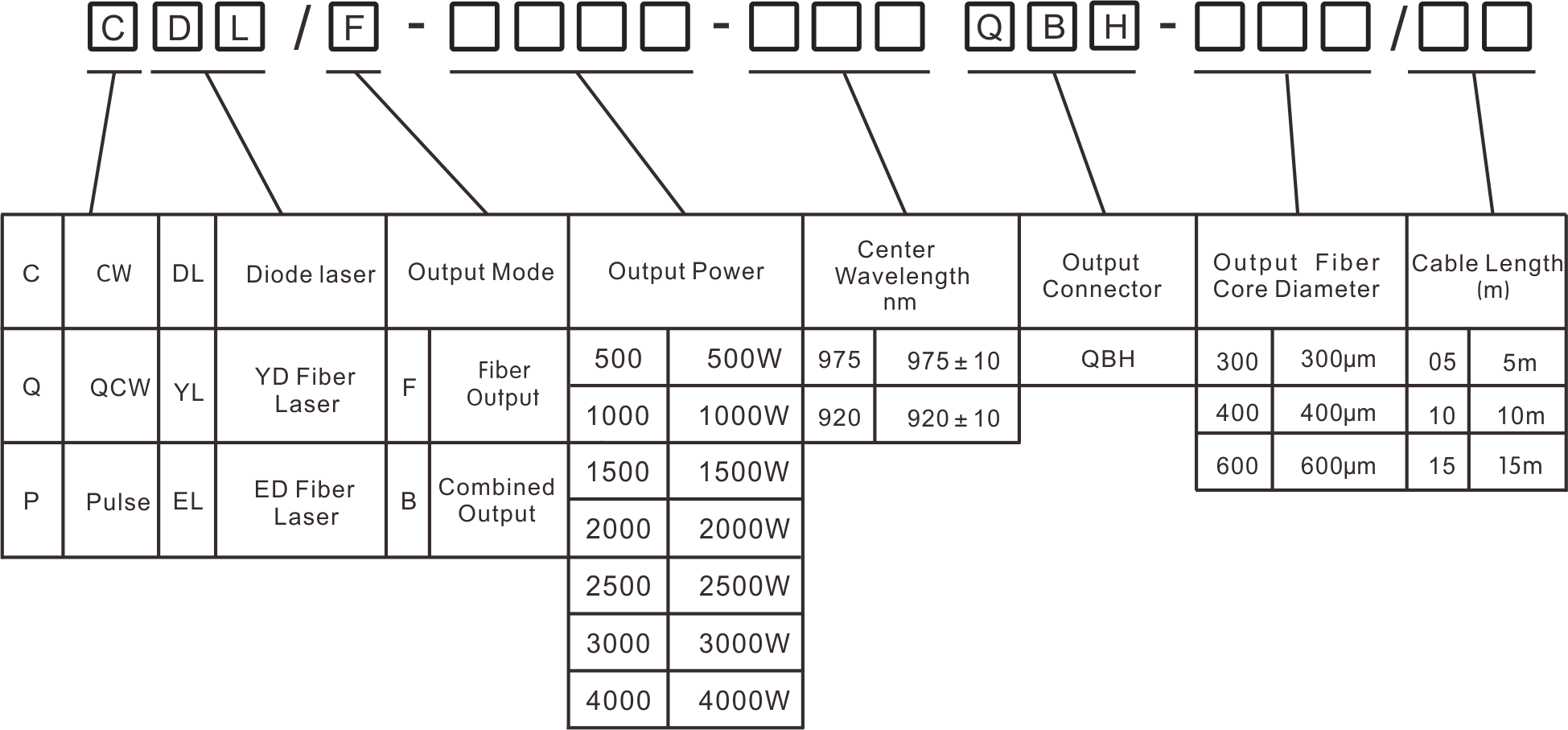

Model Explanation
