PYL/N 500-2000W

◉ Deep Engraving

◉ Foil Cutting

◉ Ablation

◉ Surface Treatment

◉ Paint Removal

◉ Spot Welding

◉ Paint Stripping

◉ Coating Removal

◉ Texturing

◉ High Speed Marking
◉ Trimming
◉ Coating Removal
◉ Scribing
◉ Surface Treatment
◉ Texturing
◉ High Speed Cutting
◉ High Speed Engraving

Description

CINA Laser PYL/N nanosecond ytterbium fiber lasers provide average output power up to 2000 W and adjustable pulse waveforms in the range of 30-500 ns. The lasers are triggered externally in a wide range of pulse repetition rates 1-4000 kHz, offers pulse energy of up to 50 mJ and the ability to scale average power independent of the energy.

PYL/N lasers are small air-cooled maintenance-free modules designed for OEM applications and make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. So suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications.

Size

500W

1000W

2000W

Series

Technical Index

	Unit	Parameter	Remarks

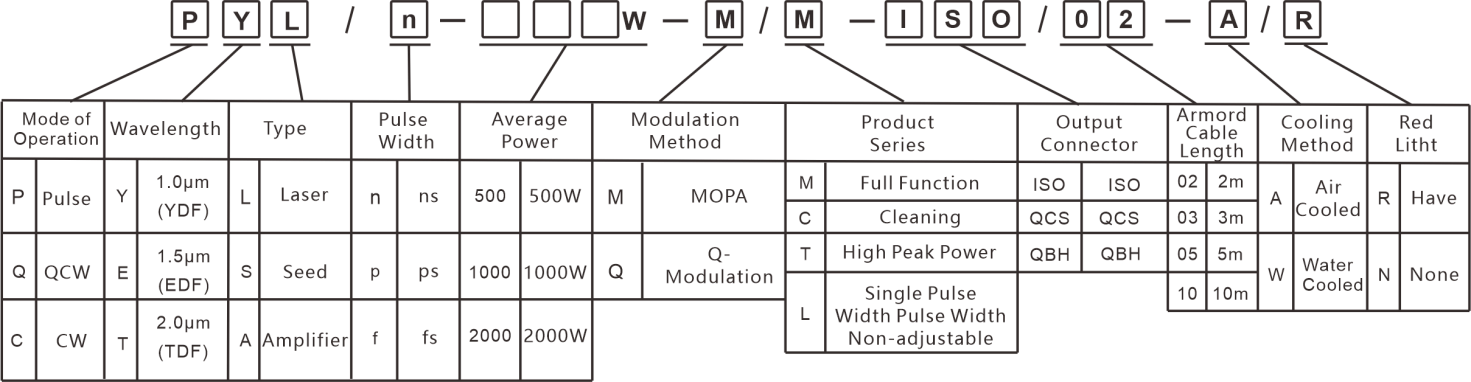

Product Model		PYL/N-500W/2000W-M/M
M2		<1.6
Armored Cable Length	m	5	Customizable
Nominal Average Output Power	W	500/1000/2000	500W/1000W/2000W
Maximum Pulse Energy	mJ	2	50, Customizable
Pulse Repetition Rate Range	kHz	1 ~ 4000
Pulse Duration	ns	30~500
Output Power Stability	%	<5
Cooling Method		Water Cooled
Supply DC Voltage (VDC)	V	48/220/380	500W/1000W/2000W
Maximum Power Consumption	W	1700/4000/8000	500W/1000W/2000W
Environmental Supply Current	A	>35
Central Emission Wavelength	nm	1064
Emission Bandwidth@3dB	nm	<20
Polarization Orientation		Random
Anti-high Reflection		Yes
Output Beam Diameter	mm	7±1.0
Output Power Tuning Range	%	0 ~ 100
Operation Temperature	℃	0 ~ 40
Storage Temperature	℃	-10 ~ 60
Weight	KG	15/30/55	500W/1000W/2000W

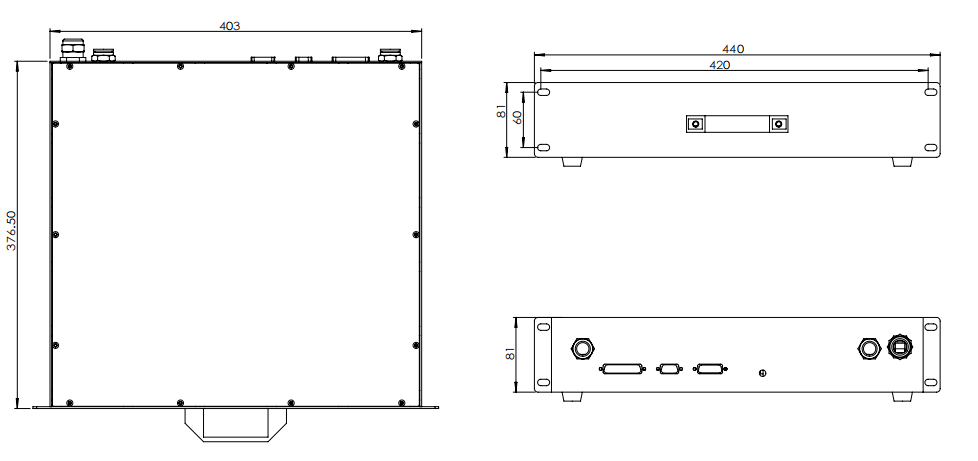

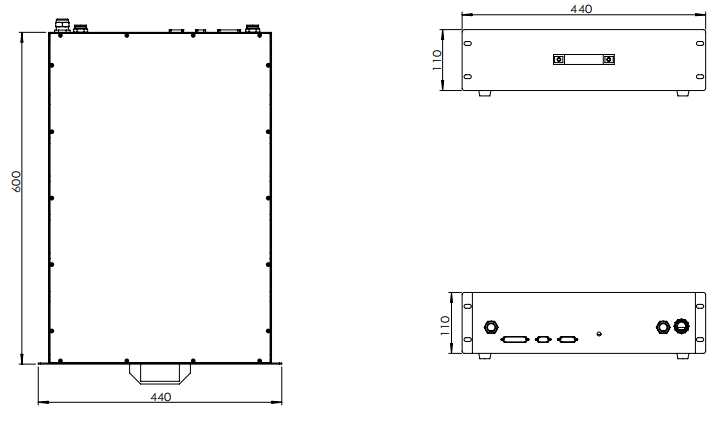

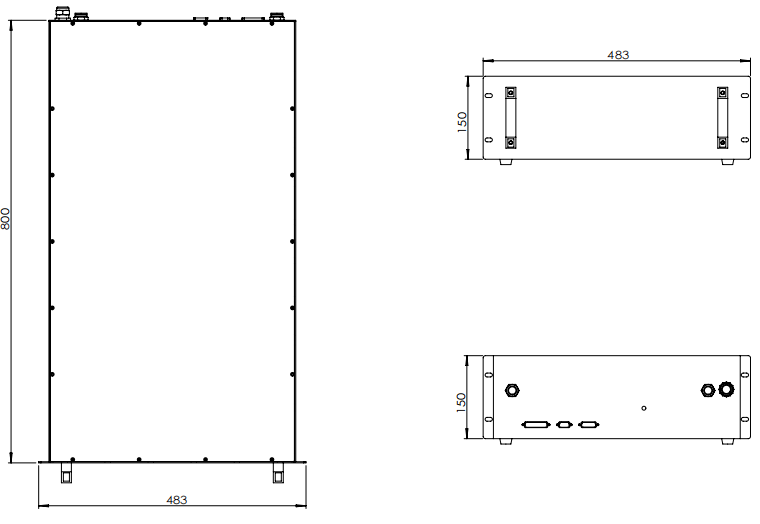

Dimensions(L×W×H)	mm	376.5x403x81 / 600x440x110 / 800x483x150	500W/1000W/2000W
