CYL-200/S

1.0 μ M Single-Mode Group Continuous Fiber Laser

Consult Now Technical Parameters User Manual

Description

Features

Applications

Technical index

Performance		Min.	Typ.	Max.	Supplement
Central Wavelength	(nm)	1070	1080	1090
Spectral Bandwidth	(nm)		3	5	-3dB
Output Optical Power	(W)	200	250
Beam Quality	(M²)			1.3	QBH-20/400 NA0.065
Glow Power	(mW)	0.3		1.0
Output Connector		QBH			Air-cooled
Output Fiber Core-Diameter	(μm)		20
Working Mode		Continuous Wave			CW
Polarization State		Random			Random
Cooling Method		Air-cooling			Fans can be removed or installed
Coolant Temp.	(°C)	20		28
Working Environment Temp.	(°C)	10		40
Working Environment Humidity	(%)	10		85
Storage Temp.	(°C)	-10		60
Weight	(kg)	6
Structure		Customize

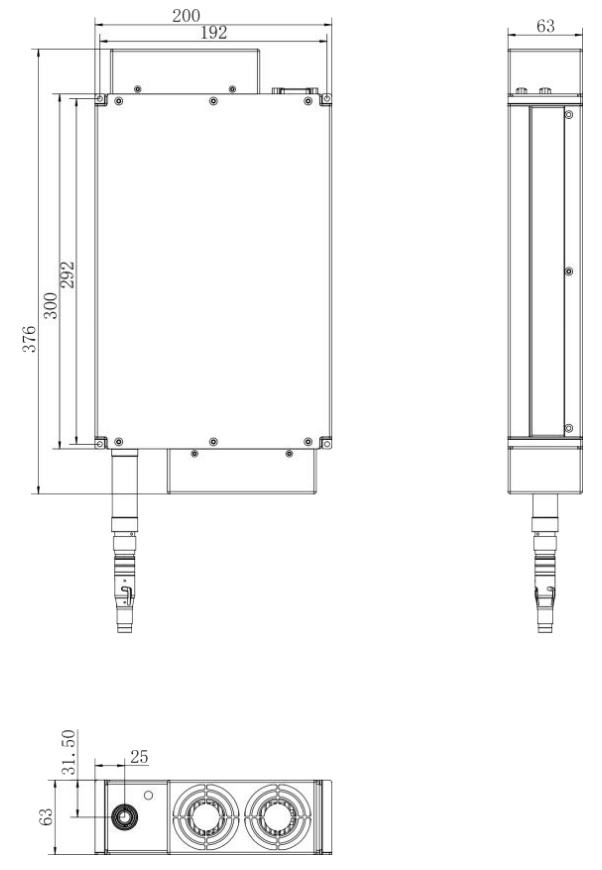

Dimensions (W) × (L) × (H)	(mm)	300X200X63 (Fan & QBH not included)
Electric-optic conversion efficiency		>25%
Power Consumption		28V, 21A (*Output Optical Power 250W)
