QYL 80/800W~120/1200W

Air Cooled QCW Fiber Laser
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail

Description
CINA LASER QYL series single-mode quasi continuous wave fiber lasers are ideal for applications requiring high peak power and small focal spot in pulsed operation mode , and a variety of microwelding and microdrilling applications. The single-mode QCW Series fiber lasers are offered as both end user friendly rack units and OEM modules for system integrators. Water-cooling lasers are substantially more cost-effective than lamp-pumped YAG lasers due to wall-plug efficiencies >30% and maintenance-free operation.CINA LASER, which is based on Internet technology, established a scientific after-sales service system. Each device has a unique identity code (the internal storage of original technology and material information). Can achieve remote online real-time monitoring; can provide users with equipment fault early warning and efficient technical support and good after-sales service.
Features
High wall plug efficiency, greatly reduce power consumption
Strong capability on resisting high-reflective, suitable for different materials processing.
Remote real-time monitoring.
High lifetime, high safety and reliability.
Can achieve personalized customization.
Excellent after-sales service system.
Excellent cost performance.
Applications
Laser cutting.
Laser welding.
Laser cladding.
Laser brazing.
Laser thermolizing.

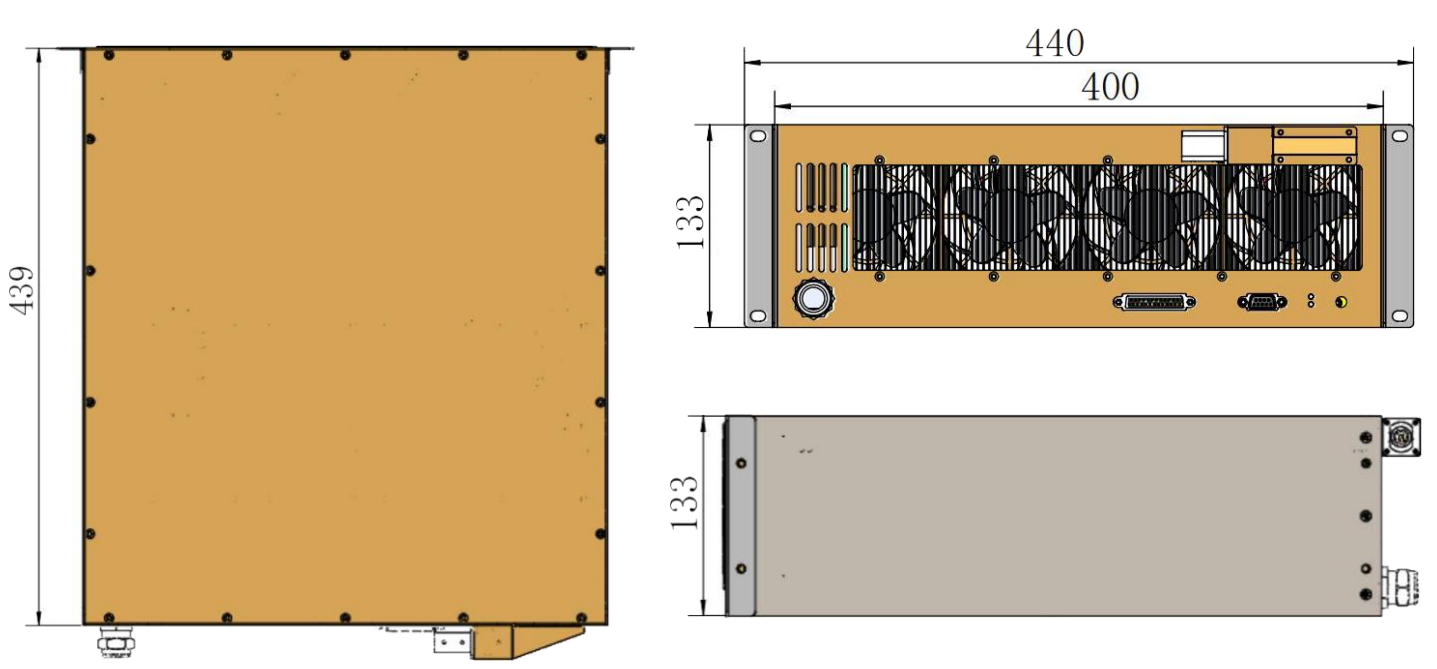

Size
Series
Technical Index
Parameters Unit Min Typ Max Remarks
Peak Power W 700 800   QYL-80/800W
  1000   QYL-100/1000W
  1200   QYL-120/1200W
Average Output Power,QCW mode W   80   QYL-80/800W
  100   QYL-100/1000W
  120   QYL-120/1200W
Pulse Energy J   8 18 QYL-80/800W
  10 22 QYL-100/1000W
  12 25 QYL-120/1200W
Frequency KHz 0   50
Pulse Duration ms 0.05   50
QBH Fiber Optic Cable Length m   5   Customize
QBH Core Diameter um 20、25、50 Customize
Working Voltage V 220
Cooling Method   Air Cooling
Operating Mode   QCW(Duty Cycle≤10%)
Remote Communication   App Customizable
Power Supply (V) 220
Power Consumption (KW)   3.0 220 V, Single-Phase Three-Wire
Cooling Mode   Air Cooled
Working Ambient Temperature (°C) 10   40
Working Environment Humidity (%) 10   85
Storage Temperature (°C) -10   60
Structure   Rack
Dimensions mm                            440(400)×439×133 Weight <25kg

Model Explanation
