(N+1)×1 Forward High Power

High Power Signal and Pump Combiner
Consult Now Technical Parameters User Manual
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail

Description
(N+1)×1 Forward High Power Signal and Pump Combiner
1.0 Description
Power Fiber Combiner(PFC) is one of the key components to break through the power scaling limitation of a single fiber laser by combing several high power fibers into a single fiber to realize the higher output power.
Features
Applications
Size

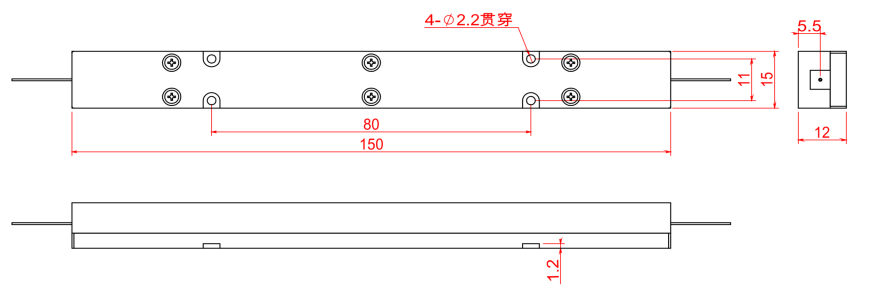

4.0 Mechanical specifications and drawings
Item Specifications Unit Notes
4.01 Module’s Dimensions 150*15*12 mm Bottom conduction cooling

Series
Technical Index
2.0 Optical and Operation Specifications
Item   Specifications Min. Typ. Max. Unit Notes
2.01 Signal wavelength 1000 1060 1100 nm
2.02 Pump wavelength 800 915 1000 nm
2.03 Polarization Random PM Customizable
2.04 Operation regime CW
2.05 Fiber length   1.5   m Default
2.06 Operating temperature range 0   +70 °C
2.07 Storage temperature -40   +85 °C
2.08 Cooling method Bottom conduction cooling
3.0 Typical fiber combinations
Item Confi. Pump Fiber Signal Fiber Output Fiber Power Handling Pump Efficiency Signal IL
3.01 （6+1）x1 200/220
220/242		 X/250 DCF X/400 DCF 800W/leg 97% ＜2dB, red pilot beam
＜0.2dB, seed laser

* X=20, 25, 30 etc.
* Better performance and other configuration can all be customized.
Model Explanation
5.0 Ordering information
SPC-①-②-③-④-⑤-⑥/⑦-⑧/⑧-⑨
①：Port combination ②：Signal propagation direction ③：Pump fiber type   S-Single clad,D-DCF
61 - (6+1) ×1 Z - Forward
F – Backward		 SM04 - 200/220 MMF, 0.22NA
SM05 - 220/242 MMF, 0.22NA
DM04 - 200/220 MMF, 0.22NA
DM05 - 220/242 MMF, 0.22NA
ect.
④：Signal input fiber type ⑤：Signal output fiber type ⑥：Pump power per port
D06 – 20/250 DCF, 0.06NA                         D07 – 25/250 DCF, 0.06NA                      D08 – 30/250 DCF, 0.06NA
ect.		 D12 - 20/400 DCF, 0.06NA                              D13 - 25/400 DCF, 0.06NA                                    D14 - 30/400 DCF, 0.06NA
ect.		 200 - 200W
400 - 400W
600 - 600W
ect.
⑦：Handling signal power ⑧/⑧：Input/Output fiber length ⑨：Package type
R - Red pilot beam                                1KW - 1000W
1.5KW - 1500W
ect.		 1.5-1.5m Default                                             2.0-2.0m
ect.		 A1 = Aluminum package 150*15*12mm
For example：SPC-61-Z-DM05-D06-D12-400/1.5KW-2.0/2.0-A1
