| Item | Specifications | Unit | Notes | ||||||||||||||||||

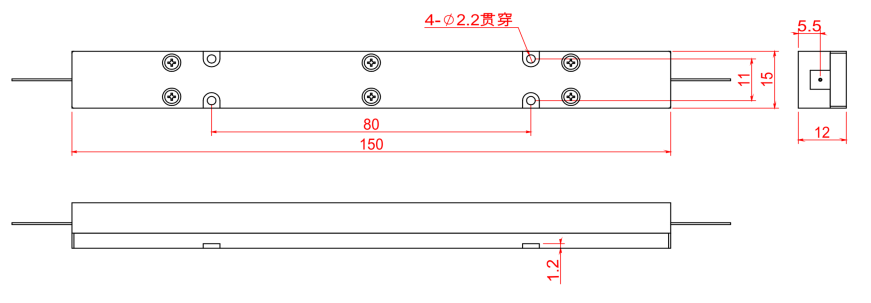

| 4.01 | Module’s Dimensions-A | 150*15*12 | mm | Bottom conduction cooling | |||||||||||||||||
 |
|||||||||||||||||||||
| Item | Specifications | Min. | Typ. | Max. | Unit | Notes | |||||||||||||||
| 2.01 | Pump wavelength | 800 | 1000 | nm | |||||||||||||||||
| 2.02 | Polarization | Random | PM Customizable | ||||||||||||||||||
| 2.03 | Operation regime | CW | |||||||||||||||||||
| 2.04 | Fiber length | 1.0 | m | Default | |||||||||||||||||
| 2.05 | Operating temperature range | 0 | +70 | °C | |||||||||||||||||
| 2.06 | Storage temperature | -40 | +85 | °C | |||||||||||||||||
| 2.07 | Cooling method | Bottom conduction cooling | |||||||||||||||||||
| Item | Confi. | Pump Fiber Type | Output Fiber Type | Pump Efficiency | Power Handling | Package | |||||||||||||||
| 3.01 | 7×1 |
106.5/125, 0.22NA 135/155,0.22NA |
220/242, 0.22NA | 95% | 200W/leg | 150*15*12 | |||||||||||||||
| 3.02 | 200/220, 0.22NA | X/400, 0.46NA | 97% | 800W/leg | 150*15*12 | ||||||||||||||||
| 3.03 | 220/242, 0.22NA | 95% | 500W/leg | 150*15*12 | |||||||||||||||||
| PFC-①-②-③-④-⑤/⑤-⑥ | |||||||||||||||||
| ①：Port combination | ②：Input fiber type | ③：Output fiber type | |||||||||||||||
|
3 – 3×1 7 – 7×1 |
D06 – 20/250 DCF, 0.06NA D07 – 25/250 DCF, 0.06NA ect. |
T01 – 100/120/360, NA:0.22/0.46 ect. |
|||||||||||||||
| ④：Handling power per port | ⑤/⑤：Input/Output fiber length | ⑥：Package type | |||||||||||||||
|
3KW – 3.0Kw 5KW – 5.0Kw ect. |
1.5 – 1.5m Default 2.0 – 2.0m 3.0 – 3.0m ect. |
A1 = Aluminum package 150*15*12mm | |||||||||||||||
| For example：PFC-3-D07-T01-3KW-1.5/1.5-A1 | |||||||||||||||||
