(N+1)×1 Backward High Power Signal and Pump Combiner
1.0 Description
The High Power Signal and Pump Combiner is designed for combining pump laser and signal laser into the main double cladding fiber. The SPC can be applied in forward, backward or double-end pumping schemes.

Features
Applications
Size

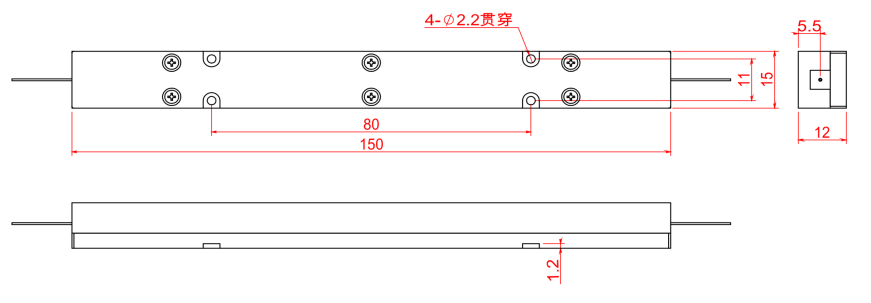

4.0 Mechanical specifications and drawings
Item Specifications Unit Notes
4.01 Module’s Dimensions 150*15*12 mm Bottom conduction cooling

Series
Technical Index
2.0 Optical and Operation Specifications
Item   Specifications Min. Typ. Max. Unit Notes
2.01 Signal wavelength 1000 1060 1100 nm
2.02 Pump wavelength 800 915 1000 nm
2.03 Polarization Random PM Customizable
2.04 Operation regime CW
2.05 Fiber length   1.5   m Default
2.06 Operating temperature range 0   +70 °C
2.07 Storage temperature -40   +85 °C
2.08 Cooling Method Bottom conduction cooling
3.0 Typical fiber combinations
Item Confi. Pump Fiber Signal Fiber Output Fiber Power Handling Pump Efficiency Signal Power Signal IL Note
3.01 (6+1) ×1 200/220      220/242 20/400DCF Y/250DCF Y/400DCF 800W/leg 97% 3kW 0.2dB Y=20, 25, 30, 50

Model Explanation
5.0 Ordering information
HSP-①-②-③-④-⑤-⑥/⑦-⑧/⑧-⑨
①：Port combination ②：Signal propagation direction ③：Pump fiber type   S-Single clad,D-DCF
61 - (6+1) ×1 Z - Forward
F – Backward		 SM04 - 200/220 MMF, 0.22NA
SM05 - 220/242 MMF, 0.22NA
DM04 - 200/220 MMF, 0.22NA
DM05 - 220/242 MMF, 0.22NA
ect.
④：Signal input fiber type ⑤：Signal output fiber type ⑥：Pump power per port
D12 - 20/400 DCF, 0.06NA                              D13 - 25/400 DCF, 0.06NA                                    D14 - 30/400 DCF, 0.06NA
ect.		 D06 – 20/250 DCF, 0.06NA                         D07 – 25/250 DCF, 0.06NA                      D08 – 30/250 DCF, 0.06NA
ect.		 200 - 200W
400 - 400W
600 - 600W
ect.
⑦：Handling signal power ⑧/⑧：Input/Output fiber length ⑨：Package type
2KW - 2000W
3KW - 3000W
5KW - 5000W
ect.		 1.5-1.5m Default                                             2.0-2.0m
ect.		 A1 = Aluminum package 150*15*12mm
For example：SPC-61-F-SM05-D12-D06-400/2KW-2.0/2.0-A1
