| Performance | Unit | Min. | Typ. | Max. | Remarks |
| Central wavelength | (nm) | 965 | 976 | 985 | 976nm |
| Spectral bandwidth（-3dB） | (nm) | 3 | 5 | ||
| Output optical power | (W) | 2000 | CDL/F-2000 | ||
| Power ADJ. range | (%) | 10 | 100 | ||
| Output power stability | (%) | 1 | 1.5 | 100% continuous＞1h | |
| 2 | 3 | 100% continuous＞24h | |||
| Beam Quality | (rad) | ≤0.22 | 2000W | ||
| Modulation frequency | (KHz) | 20 | 100% output | ||
| Red light power | (mW) | 0.3 | 1.0 | ||
| Output connector | QBH | Customizable | |||
| Output fiber core diameter | (μm) | 600 | 2000W | ||
| Output fiber length | (m) | 5 | 10 | 15 | Customizable |
| Output fiber bending radius | (mm) | 200 | |||
| Work mode | Continuous/Modulation | CW/Modulate | |||
| State of polarization | Random | Random | |||
| Communication interface | RS232 / AD / Super terminal | ||||
| Remote telecommunication | APP | Customizable | |||
| Power supply | (V) | 200 | 220 | 240 | |
| Power consumption | (KW) |
8.8 |
2000W | ||
| Cooling mode | Water cooling | Circumscribed | |||
| Temperature of cooling water | (°C) | 21 | 25 | ||
| Working ambient temperature | (°C) | 10 | 40 | ||
| Working ambient humidity | (%) | 10 | 85 | ||
| Storage temperature | (°C) | -10 | 60 | ||
| Weight | (kg) | 28.5 | |||
| Structure | 19’ Rack | ||||

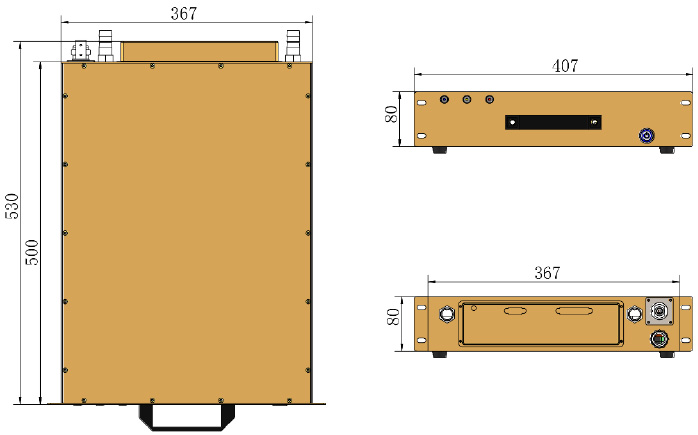

| Size (W) × (L) × (H) | (mm) | 407(367)×530(500)×80 | 2000W | ||
