| Performance | Unit | Min. | Typ. | Max. | Remarks |
| Central Wavelength | (nm) | 965 | 975 | 985 | 975nm |
| Spectral Bandwidth（-3dB） | (nm) | 3 | 5 | ||
| Output Optical Power | (W) | 4000 | |||
| 5000 | |||||
| 6000 | |||||
| Power ADJ. Range | (%) | 10 | 100 | ||
| Output Power Stability | (%) | 1 | 1.5 | 100% Continuous＞1h | |
| 2 | 3 | 100% Continuous＞24h | |||
| Fiber numerical aperture | (NA) | 0.22 | 4000W~6000W | ||
| Modulation Frequency | (KHz) | 20 | 100% Output | ||
| Red Light Power | (mW) | 40 | 80 | ||
| Output Connector | QBH | Customizable | |||
| Output Fiber Core Diameter | (μm) | 600 | 400、600、800 Optional | ||
| Output Fiber Length | (m) | 15 | Customizable | ||
| Output Fiber Bending Radius | (mm) | 200 | |||
| Work Mode | Continuous/Modulation | CW/Modulate | |||
| State Of Polarization | Random | Random | |||
| Communication Interface | RS232 / AD / Super terminal | ||||
| Remote Telecommunication | APP | Customizable | |||
| Power Supply | (V) | 220/380 | Circumscribed | ||
| Power Consumption | (KW) | 10-12 | 4000W~6000W | ||
| Cooling Mode | Water cooling | Circumscribed | |||
| Temperature Of Cooling Water | (°C) | 21 | 25 | ||
| Working Ambient Temperature | (°C) | 10 | 40 | ||
| Working Ambient Humidity | (%) | 10 | 85 | ||
| Storage Temperature | (°C) | -10 | 60 | ||
| Weight | (kg) | <75 | 4000W | ||
| <90 | 6000W | ||||
| Structure | 19’ Rack | ||||

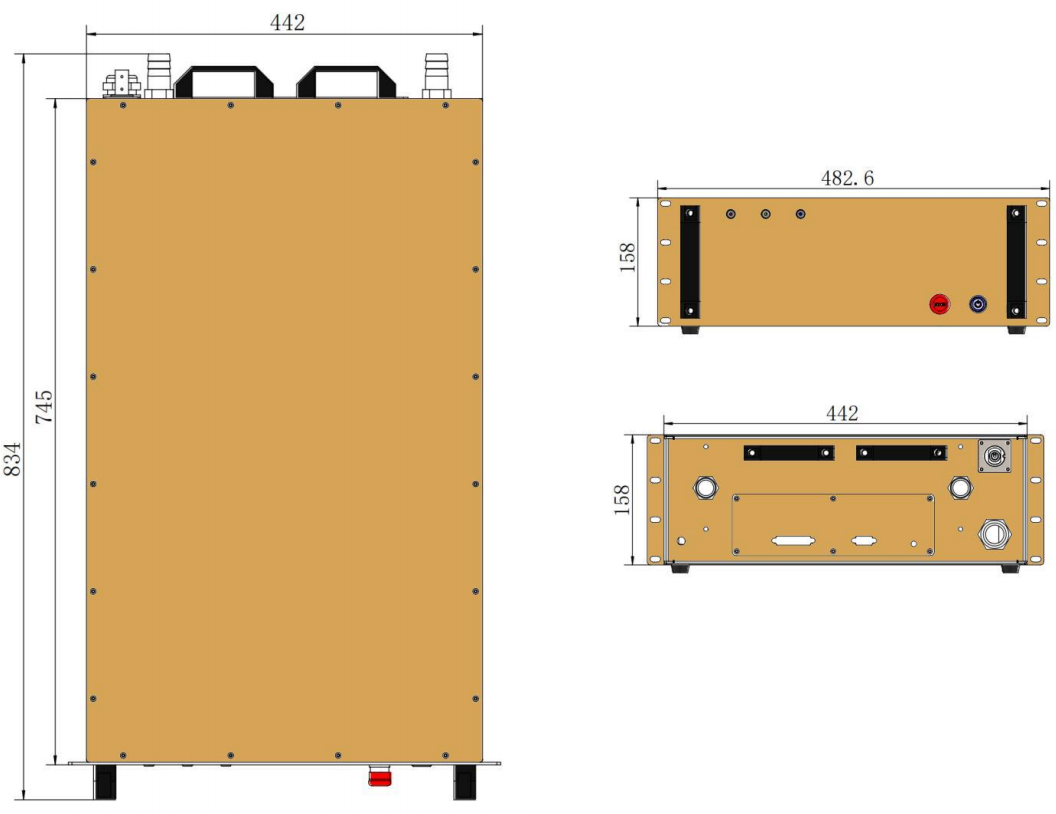

| Size (W) × (L) × (H) | (mm) | 745 x 482.6 x 158 | 4000W~6000W | ||
