CDL/F Air Cooled

Description

CINA LASER’s CDL/F Air Cooled 1.0μm single-mode group continuous fiber laser, adopts latest industry technology and the optimization design, with high electro-optical conversion efficiency, high lifetime, high safety and reliability.

CINA LASER, which is based on Internet technology, established a scientific after-sales service system. Each device has a unique identity code (the internal storage of original technology and material information). Can achieve remote online real-time monitoring; can provide users with equipment fault early warning and efficient technical support and good after-sales service.

CINA LASER’s products with high quality, high reliability and excellent cost performance, can meet the requirements of the customer diversification and personalized customization. It also with good after-sales service, is the ideal choice for system integrates and equipment manufacturers.

Features

◉ High wall plug efficiency, greatly reduce power consumption

◉ Strong capability on resisting high-reflective, suitable for different materials processing.

◉ Remote real-time monitoring.

◉ High lifetime, high safety and reliability.

◉ Can achieve personalized customization.

◉ Excellent after-sales service system.

◉ Excellent cost performance

Applications

◉ Optical Pumping

◉ Plastics Welding

◉ Soft Soldering

◉ Brazing

◉ FPD Bonding

◉ Silicon Surface Modification

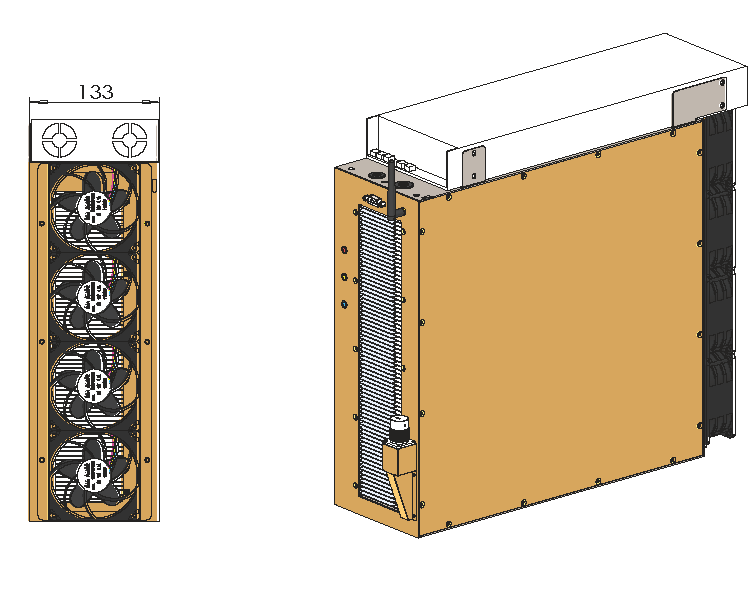

Size

Series

Technical Index

Performance				Min.		Typ.	Max.		Remarks
Optical Characteristics	Central Wavelength		(nm)			976/915
	Spectral Bandwidth		(nm)			3	5		-3dB
	Output Optical Power		(W)			200			300W / 400W / 500W
	Short Time Power Stability		（%）	±1
	Long Time Power Stability		（%）	±2
	Laser Opening Time		（μs）	50~100
	Laser Shutdown Time		（μs）	100~200
	Power Regulation Range		(%)	10			100
	Modulation Frequency		(KHz)	5			20		100%output
	Red Light Power		(mW)	5			60
Output Characteristics	Output Connector					SMA905			Customizable
	Output Fiber Length		(m)			2			Customizable
	Output Cable Bending Radius		(mm)	200
	Work Model			Continuous/modulation					CW/Modulate
	State Of Polarization			Random					Random
Electrical Cooling Characteristics	Communication Interface			RS232
	Remote Communication			APP					Customizable
	Power Supply		(V)			220
	Power Consumption	CDL/F-200	(KW)				1.0		220V，Single phase three
		CDL/F-300					1.1
		CDL/F-400					1.2
		CDL/F-500					1.5
	Cooling Mode			Air cooling					External
General Characteristics	Working Ambient Temperature		(°C)	10			40
	Working Environment Humidity		(%)	10			85
	Storage Temperature		(°C)	-10			60
	Structure			Rack
	Weight/Size		(kg)	<25	W× L× H（mm）			370（414.5）×441×133
