CYL-2000/S

1.0μM Single-Mode Group Coninuous Fiber Laser
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail

Description
CINA Laser’s CYL-2000/S 1.0μm single-mode group continuous fiber laser, adopts latest industry technology and the optimization design, with high electro-optical conversion efficiency, high lifetime, high safety and reliability. The unit with high-quality output beam and strong capability on resisting high-reflective, can be widely used in all kinds of materials of laser cutting, welding, punching, 3D printing and other high-end smart manufacturing.
CINA Laser, which is based on Internet technology, established a scientific after-sales service system. Each device has a unique identity code (the internal storage of original technology and material information). Can achieve remote online real-time monitoring; can provide users with equipment fault early warning and efficient technical support and good after-sales service.
CINA Laser’s products with high quality, high reliability and excellent cost performance, can meet the requirements of the customer diversification and personalized customization. It also with good after-sales service, is the ideal choice for system integrates and equipment manufacturers.


Features
 High electro-optical conversion efficiency, greatly reduced the power consumption
 Strong capability on resisting high-reflective, suitable for different materials processing.
 Remote real-time monitoring.
 High lifetime, high safety and reliability.
 Can achieve personalized customization.
 Excellent after-sales service system.
 Excellent cost performance
Applications
 Laser cutting.
 Laser welding.
 Laser cladding.
 Laser brazing.
 Laser thermolizing.

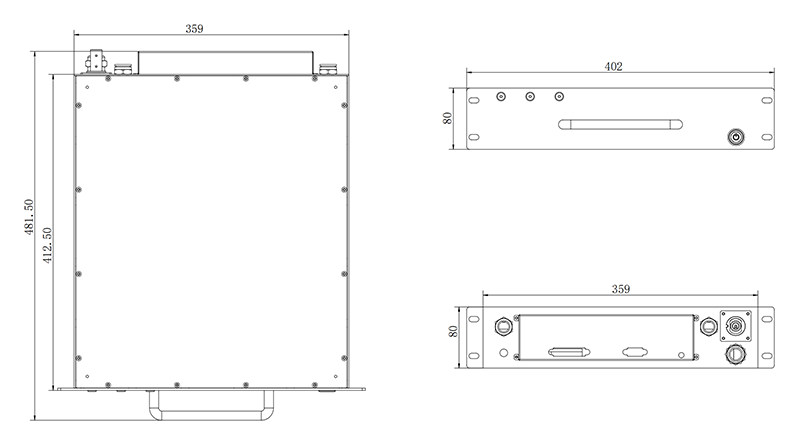

Size
Series
Technical Index
Performance Min. Typ. Max. Supplement
Optic Feature Central wavelength (nm) 1070 1080 1090
Spectral bandwidth (nm)   3 5 -3dB
Output optical power (W)   2000
Power ADJ. range (%) 10   100
Output power stability (%)   1 1.5 100% continuous >1h
  2 3 100% continuous >24h
Beam quality (BPP)     1.3 QBH-20/400
    2.8 QBH-50/360
Modulation frequency. (KHz)     20 100% output
Glow power (mW) 0.3   1.0
Output Feature Output connector     QBH   Customize
Output fiber core-diameter (μm)   20 100
Output fiber length (m)   15   Customize
Output fiber l
bending radius
(mm) 200
Working mode   Continuous modulation CW/Modulate
Polarization state   Random Random
Electrical cooling
 Feature
Telecommunication port   RS232 / AD / Super terminal
Remote telecommunication   APP Customize
Power supply (V) 340 380 420 Three phase five wire
Power consumption (KW)     6.0
Cooling method   Water-cooling Circumscribed
Coolant temp. (°C) 21   25
Coolant flow (L/min)   25
General Feature Working environment temp. (°C) 10   40
Working environment humidity (%) 10   85
Storage temp. (°C) -10   60
Weight (kg)   23.5
Structure   Machine cabinet
Size (W) × (L) × (H) (mm) 402 (359)x481.5(412.5)x80 (W)with Handle×(L) with Handle×(H)

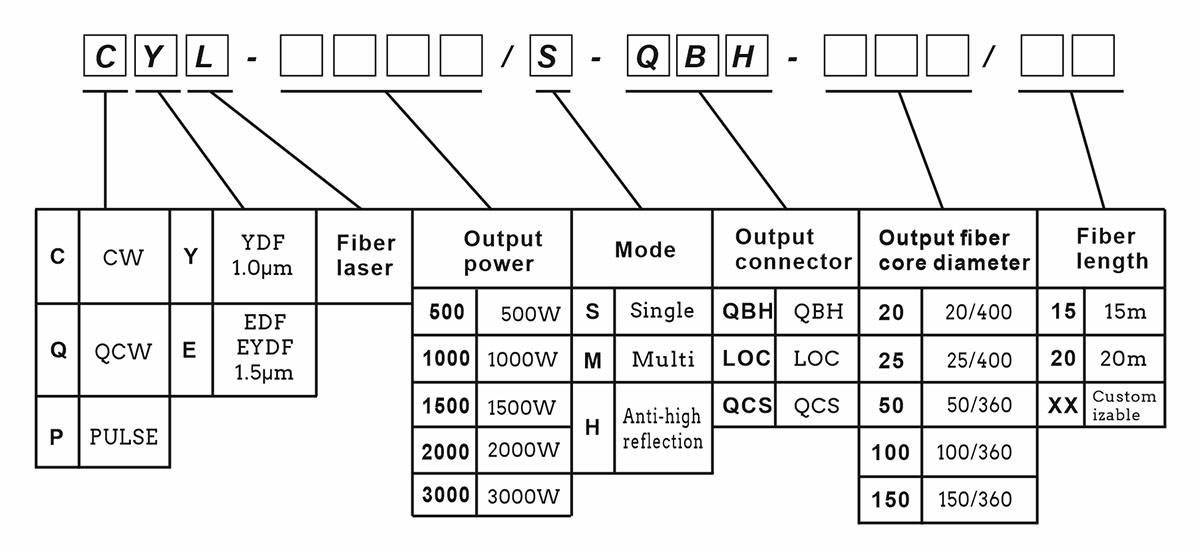

Model Explanation

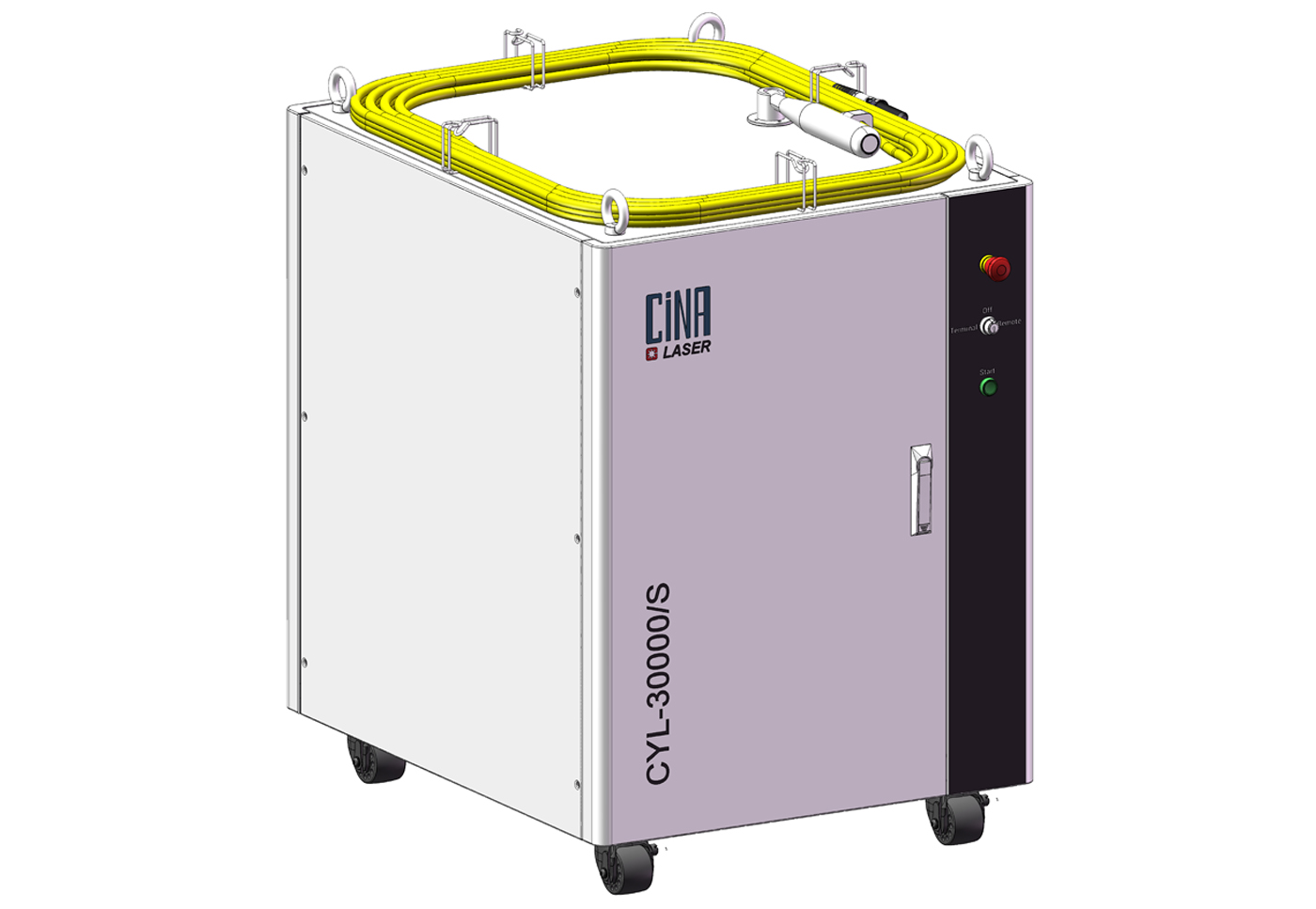

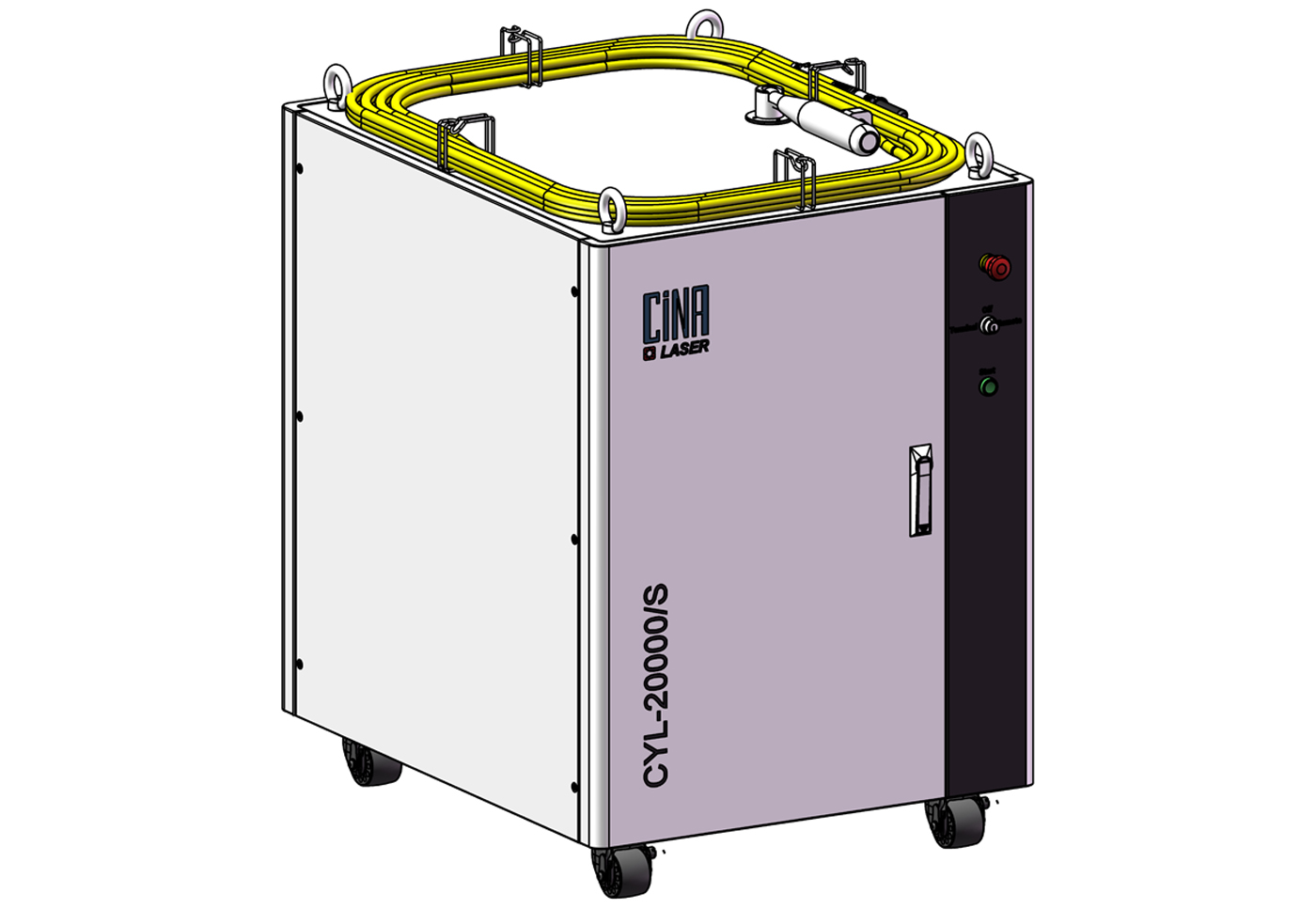

Related Products
