CYL-3000

Description

CINA Laser’s CYL-3000 1.0μm single-mode group continuous fiber laser, adopts latest industry technology and the optimization design, with high electro-optical conversion efficiency, high lifetime, high safety and reliability. The unit with high-quality output beam and strong capability on resisting high-reflective, can be widely used in all kinds of materials of laser cutting, welding, punching, 3D printing and other high-end smart manufacturing.

CINA Laser, which is based on Internet technology, established a scientific after-sales service system. Each device has a unique identity code (the internal storage of original technology and material information). Can achieve remote online real-time monitoring; can provide users with equipment fault early warning and efficient technical support and good after-sales service.

CINA Laser’s products with high quality, high reliability and excellent cost performance, can meet the requirements of the customer diversification and personalized customization. It also with good after-sales service, is the ideal choice for system integrates and equipment manufacturers.

Features

◉ High electro-optical conversion efficiency, greatly reduced the power consumption

◉ Strong capability on resisting high-reflective, suitable for different materials processing.

◉ Remote real-time monitoring.

◉ High lifetime, high safety and reliability.

◉ Can achieve personalized customization.

◉ Excellent after-sales service system.

◉ Excellent cost performance

Applications

◉ Laser cutting.

◉ Laser welding.

◉ Laser cladding.

◉ Laser brazing.

◉ Laser thermolizing.

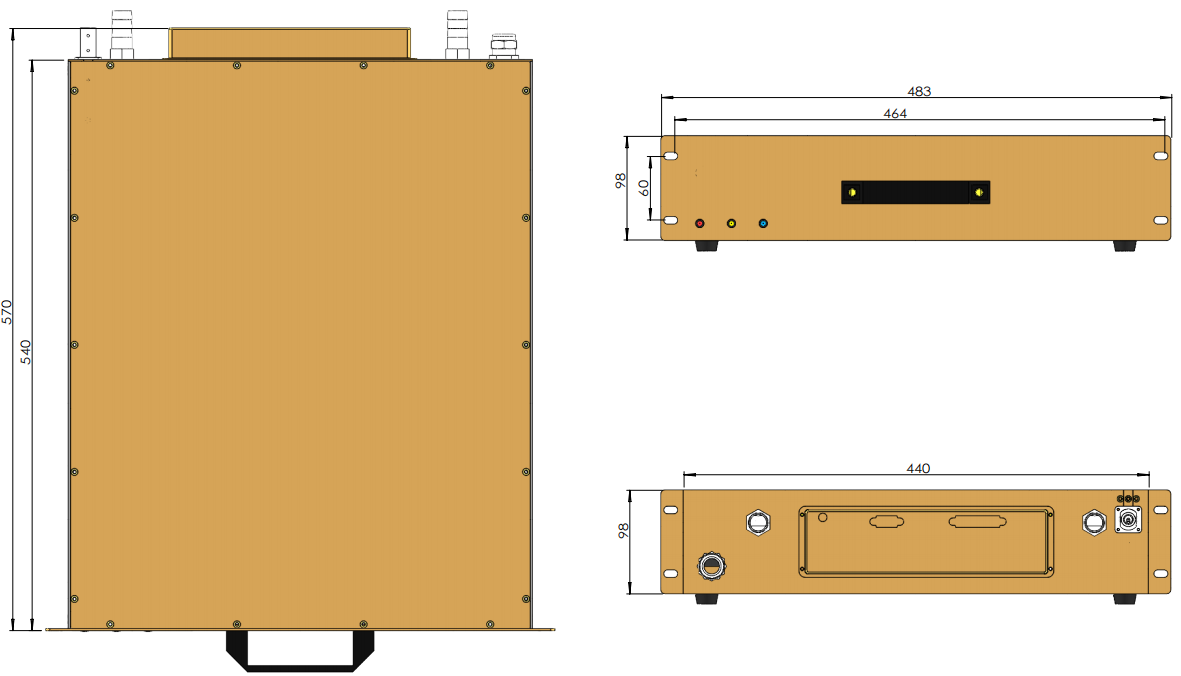

Size

Series

Technical Index

Performance	Unit	Min.	Typ.	Max.	Remarks
Central Wavelength	(nm)	1070	1080	1090
Spectral Bandwidth	(nm)		3	5	-3dB
Output Optical Power	(W)		3000
Short Time Power Stability	(%)	±1
Long Time Power Stability	(%)	±2
Laser Opening Time	(μs)	50~100
Laser Shutdown Time	(μs)	100~200
Power Regulation Range	(%)	10		100
Beam Quality	(M2)			1.8	QBH-50
Beam Quality	(M2)			3.6	QBH-100
Fiber Numerical Aperture（NA）Half Angle	(rad)			0.22	QBH-50、100
Modulation Frequency	(KHz)	5		20	100% output
Red Light Power	(mW)	5		60
Output Connector			QBH
Output Fiber Core Diameter	(μm)		50		Customizable
Output Fiber Length	(m)		10		Customizable
Output Cable Bending Radius	(mm)	200
Work Model		Continuous/Modulation			CW/Modulate
State of Polarization		Random			Random
Communication Interface		RS232/AD /Super Terminal
Remote Communication		APP			Customizable
Power Supply	(V)		220 / 380
Power Consumption	(KW)			9.0
Cooling Mode		Water Cooling			External
Cooling Water Temperature	(°C)	21		25
Cooling Water Flow	(L/min)		10
Working Ambient Temperature	(°C)	10		40
Working Environment Humidity	(%)	10		85
Storage Temperature	(°C)	-10		60
Structure		Rack
Weight/Dimensions	(kg)	28.5	(W)×(L) with Handle)×(H) (mm)			483 (440)x570x98
