CYL-30000

Description

CINA Laser’s 30kW fiber laser has excellent beam quality, and the laser beam can be focused to near the diffraction limit. There are two working modes to choose from: continuous and modulated pulse, greatly reducing the processing heat affected zone; Reliable performance, modular all fiber design, all optoelectronic devices are encapsulated in sturdy enclosures, capable of withstanding harsh industrial application conditions.

This product is widely used in fields such as laser cutting, laser welding, laser drilling, etc. It can process various types of steel, aluminum based and nickel based alloys, titanium alloys, aluminum oxide ceramics, etc. Meanwhile, CINA Laser has professional laser application engineers dedicated to providing you with high-quality laser system solutions.

Features

◉ Low cost, maintenance free

◉ Excellent power stability

◉ High electro-optical conversion efficiency

◉ The maximum modulation frequency reaches 5kHz

Applications

◉ Laser cutting

◉ Laser welding

◉ Laser drilling

◉ Cutting and welding

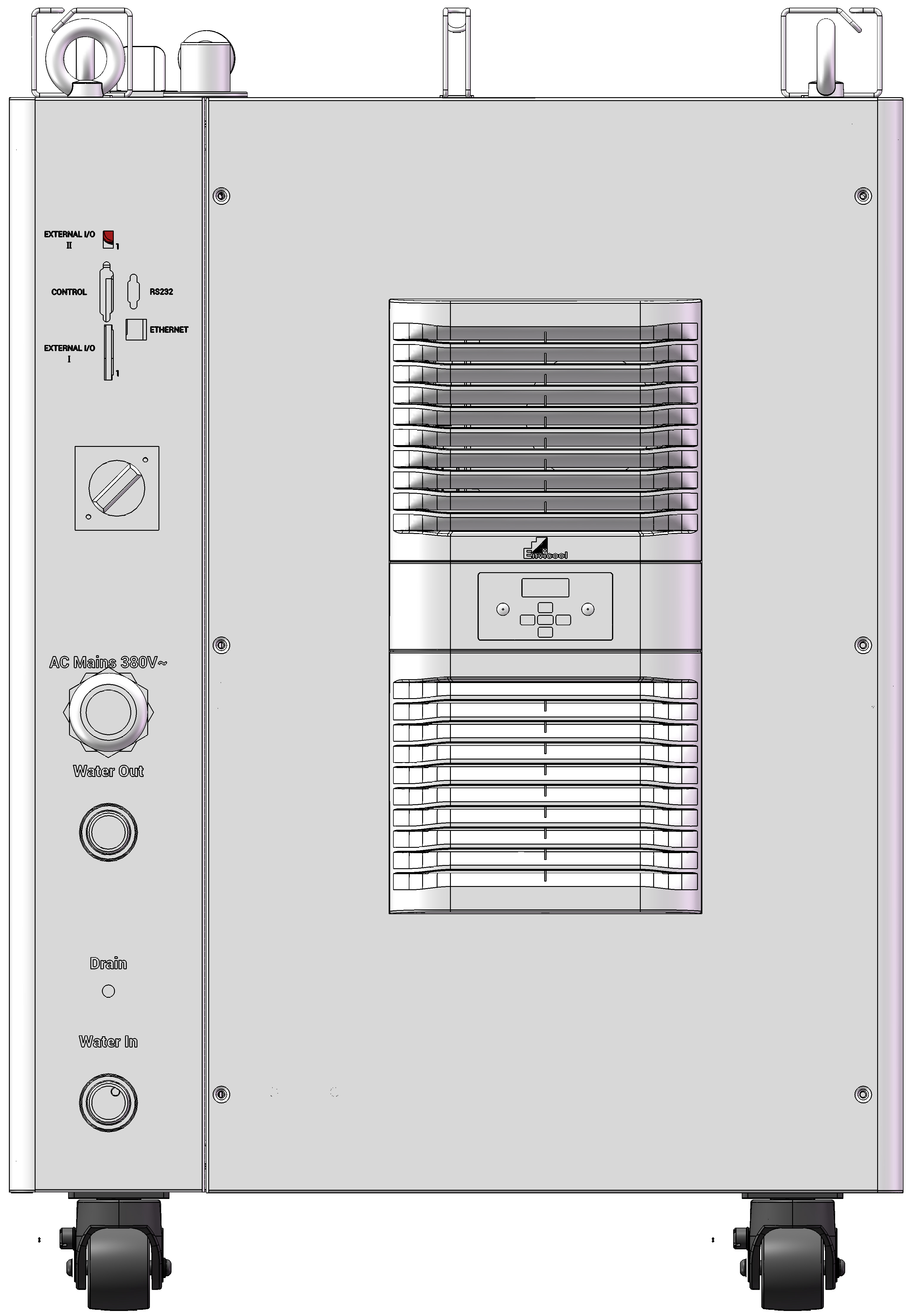

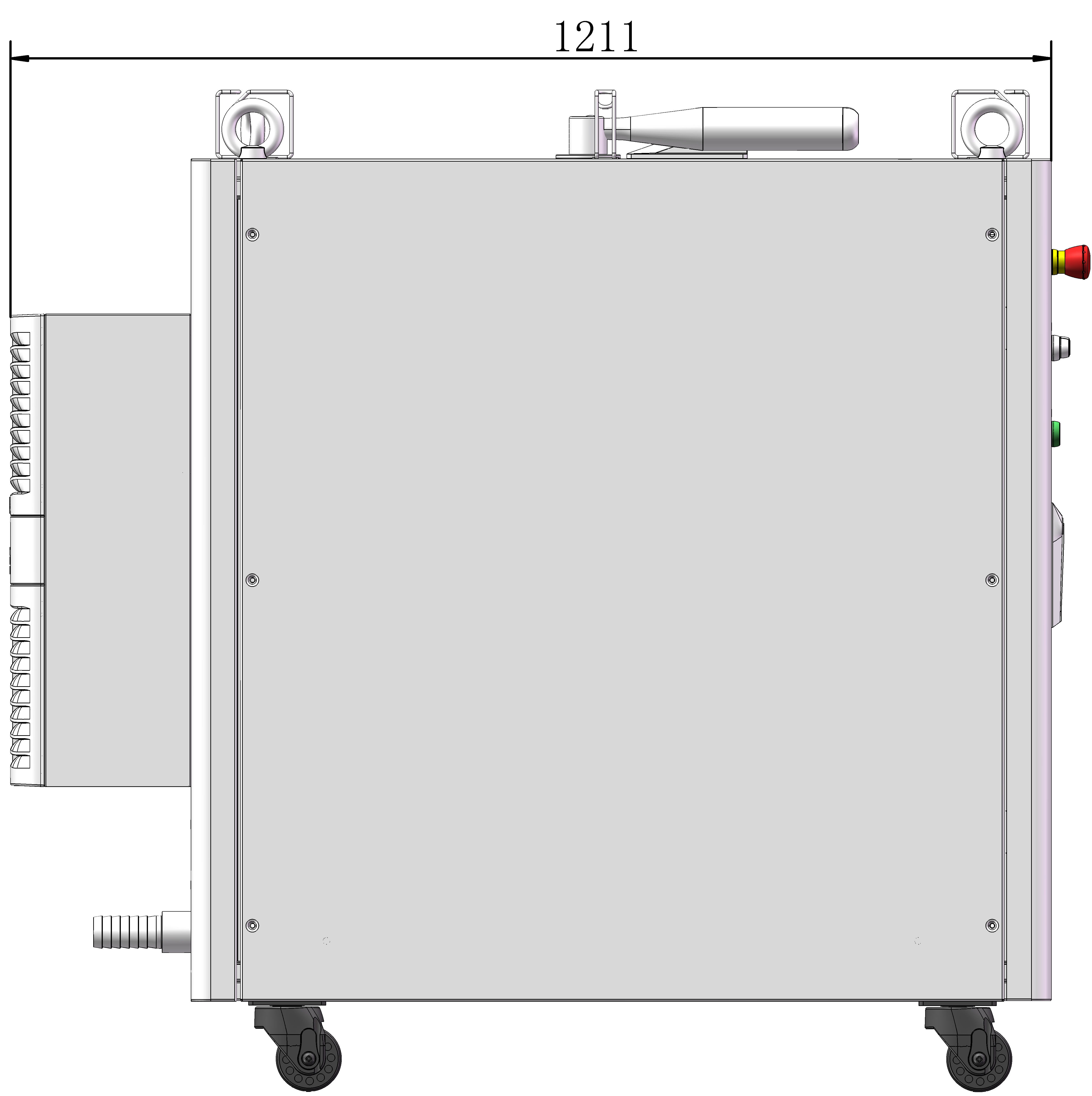

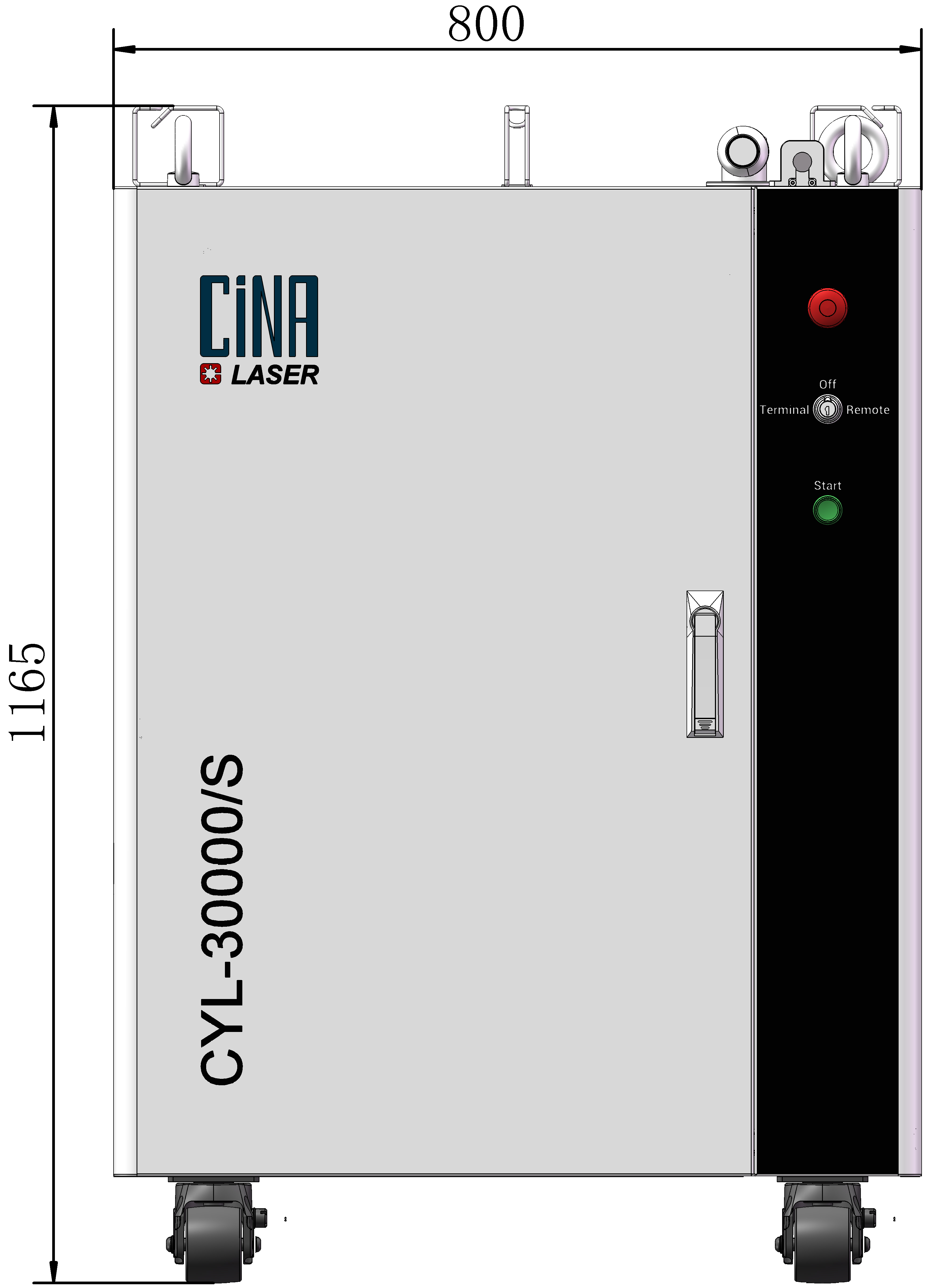

Size

Series

Technical Index

Performance	Unit	Min.	Typ.	Max.	Remark
Power	W	30000
Wavelength Range	nm	1070	1080	1090
Fiber Core Diameter	μm	100/150
Fiber Optic Cable Length	m	30 m or Customized
Output Connector		QF/QF-D Customized
Indicator Light		Red
Working Mode		Continuous or Modulated
Polarization Direction		Random
Output Power Stability (25 ℃)				±1.5% (2h)
Power Regulation Range	%	10-100
Maximum Modulation Frequency	kHz	5
Weight	Kg			560
External Dimensions	Mm	80011651211
Voltage		Three Phase, 380±20V,AC,PE,50/60Hz
Power Waste	KW	100
Control Mode		RS232/AD
Cooling Demand	kW	60
Set Temperature		25℃（Laser Module），30℃（QF）
Water Pipe Size	mm	Φ38
Low Temperature Cooling Water Flow Rate	L/min	270
High Temperature Cooling Water Flow Rate	L/min	3.0
