CYL-6000

Description

CINA Laser’s CYL-6000 1.0μm multimode group continuous fiber laser, adopts latest industry technology and the optimization design, with high electro-optical conversion efficiency, high lifetime, high safety and reliability. The unit with high-quality output beam and strong capability on resisting high-reflective, can be widely used in all kinds of materials of laser cutting, welding, punching, 3D printing and other high-end smart manufacturing.

CINA Laser, which is based on Internet technology, established a scientific after-sales service system. Each device has a unique identity code (the internal storage of original technology and material information). Can achieve remote online real-time monitoring; can provide users with equipment fault early warning and efficient technical support and good after-sales service.

CINA Laser’s products with high quality, high reliability and excellent cost performance, can meet the requirements of the customer diversification and personalized customization. It also with good after-sales service, is the ideal choice for system integrates and equipment manufacturers.

Features

◉ High wall plug efficiency, greatly reduce power consumption

◉ Strong capability on resisting high-reflective, suitable for different materials processing.

◉ Remote real-time monitoring.

◉ High lifetime, high safety and reliability.

◉ Can achieve personalized customization.

◉ Excellent after-sales service system.

◉ Excellent cost performance

Applications

◉ Laser cutting.

◉ Laser welding.

◉ Laser cladding.

◉ Laser brazing.

◉ Laser thermolizing.

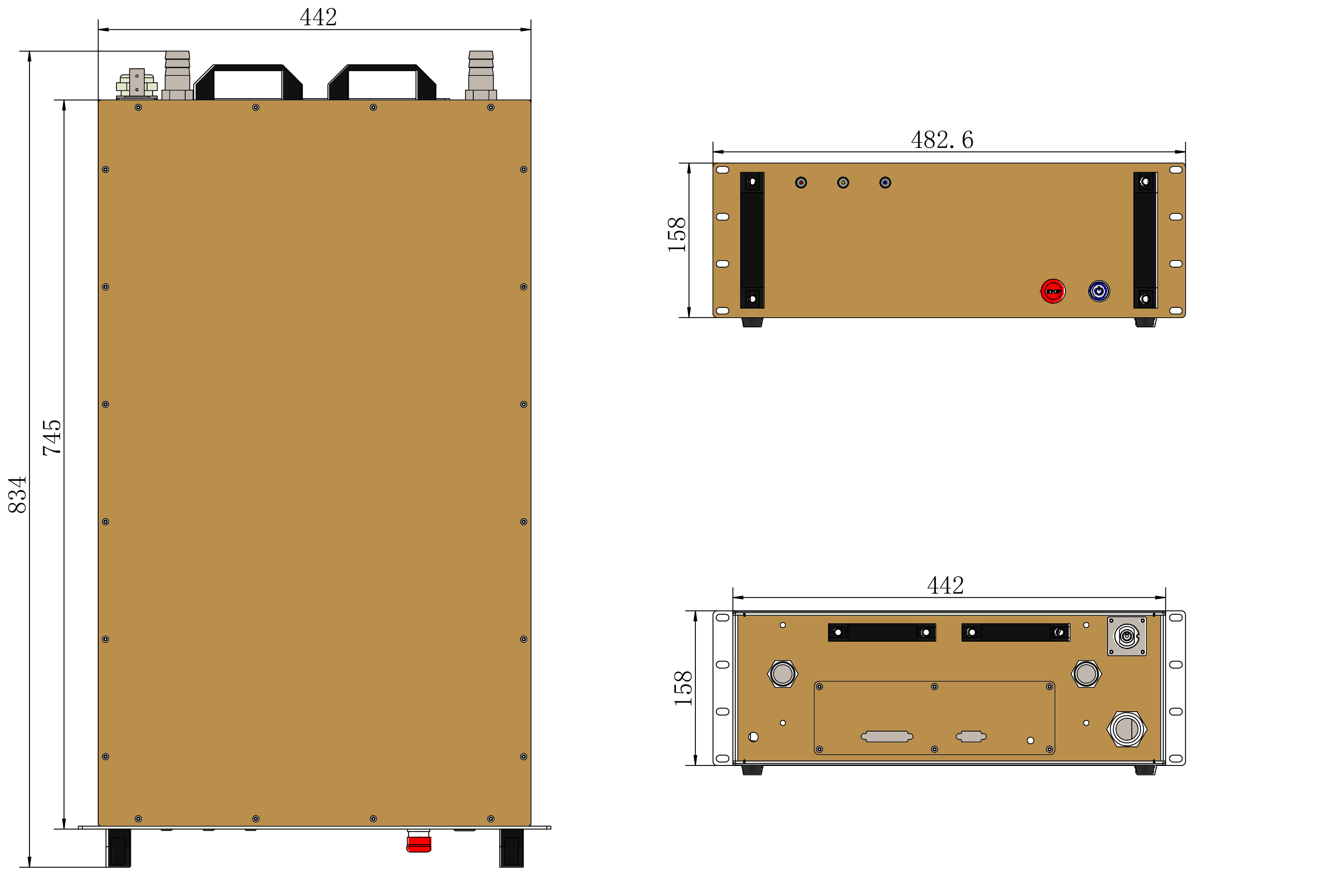

Size

Series

Technical Index

Performance			Min.	Typ.	Max.	Supplement
Optic Feature	Central wavelength	(nm)	1070	1080	1090
	Spectral bandwidth	(nm)		5	8	3dB
	Output optical power	(W)		6000
	Power ADJ. range	(%)	10		100
	Output power stability	(%)		-1	1	100% continuous ＞1h
	Output power stability	(%)		±2	±3	100% continuous ＞24h
	Modulation frequency.	(KHz)			5	100％output
	Glow power	(mW)	0.3		1.0
Output Feature	Output connector			QBH		6000W
	Beam quality（BPP）	(μm)	3.5		4.5	Output fiber core-diameter100um
			5		6.5	Output fiber core-diameter150um
			6.5		9	Output fiber core-diameter200um
	Output fiber length	(m)		20		Customize
	Output fiber core-diameter	(μm)	100（150／200 Customize）
	Output fiber bending radius	(mm)	200
	Working mode		Continuous modulation
	Polarization state		Random			Random
Electrical cooling Feature	working voltage	(V)	360	400	440	VAC
	Input power	(KW)			20	CYL-6000/M 100％ output
	Laser on time	(μs)
	Laser off time	(μs)
	Modulation frequency.
	Cooling method	(L/min)	Water-cooling			Circumscribed
General Feature	Working environment temp.	(°C)	10	25	40
	Working environment humidity	(%)	10		80
	Storage temp.	(°C)	-10	25	60
	Weight	(kg)		63
	Cooling medium		distilled water(Above 0 ℃)/Ethylene glycol antifreeze(Below 0℃) distilled water（Above 0 ℃）／Ethylene glycol antifreeze（Below 0 ℃） distilled water（Above 0 ℃）／Ethylene glycol antifreeze（Below 0 ℃）
	Size	mm	(L)x(W)x(H)=796x442x221
