CYL-500/S

Description

CINA Laser CYL-500/S 1.0μm single-mode group continuous fiber laser, adopts latest industry technology and the optimization design, with high electro-optical conversion efficiency, high lifetime, high safety and reliability. The unit with high-quality output beam and strong capability on resisting high-reflective, can be widely used in all kinds of materials of laser cutting, welding, punching, Metal 3D printing and other high-end smart manufacturing.

CINA Laser, which is based on Internet technology, established a scientific after-sales service system. Each device has a unique identity code (the internal storage of original technology and material information). Can achieve remote online real-time monitoring; can provide users with equipment fault early warning and efficient technical support and good after-sales service.

Features

◉ High wall plug efficiency, greatly reduce power consumption

◉ Remote real-time monitoring.

◉ High lifetime, high safety and reliability.

◉ Can achieve personalized customization.

◉ Excellent after-sales service system.

◉ Excellent cost performance

Applications

◉ Laser cutting.

◉ Laser welding.

◉ Laser cladding.

◉ Laser brazing.

◉ Laser thermolizing.

◉ Laser additive manufacturing

◉ Solar plant automation

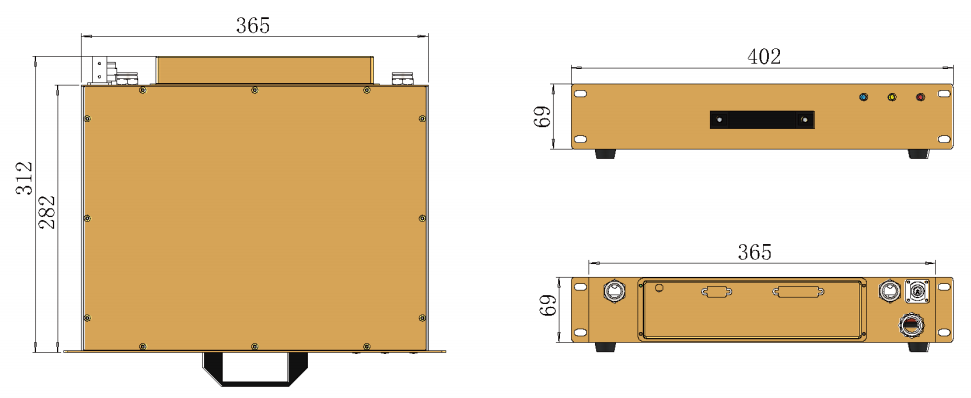

Size

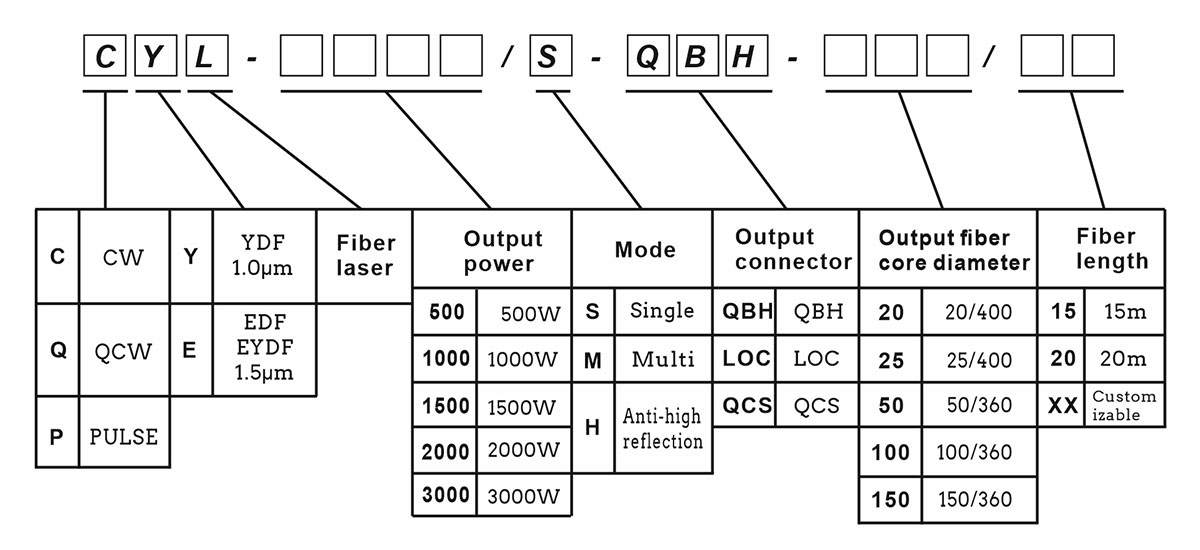

Series

Technical Index

Performance			Min.	Typ.	Max.	Supplement
Optic Feature	Central wavelength	(nm)	1070	1080	1090
	Spectral bandwidth	(nm)		3	5	-3dB
	Output optical power	(W)		500
	Power ADJ. range	(%)	10		100
	Output power stability	(%)		1	1.5	100% continuous ＞1h
	Output power stability	(%)		2	3	100% continuous ＞24h
	Beam quality	(M²)			1.3	QBH-20/400
	Beam quality	(M²)			2.8	QBH-50/360
	Modulation frequency.	(KHz)			20	100% output
	Glow power	(mW)	0.3		1.0
Output Feature	Output connector			QBH		Customize
	Output fiber core-diameter	(μm)		20	100
	Output fiber length	(m)		15		Customize
	Output fiber bending radius	(mm)	200
	Working mode		Continuous modulation			CW/Modulate
	Polarization state		Random			Random
Electrical cooling Feature	Telecommunication port		RS232 / AD / Super terminal
	Remote telecommunication		APP			Customize
	Power supply	(V)		220		Two phase three wire
	Power consumption	(KW)			3.0
	Cooling method		Water-cooling			Circumscribed
	Coolant temp.	(°C)	21		25
	Coolant flow	(L/min)		10
General Feature	Working environment temp.	(°C)	10		40
	Working environment humidity	(%)	10		85
	Storage temp.	(°C)	-10		60
	Weight	(kg)		16.5
	Structure		Machine cabinet
	Size (W) × (L) × (H)	(mm)	402(365) x 341(311) x 69			(W)With Handle×(L) With Handle ×(H) (mm)
