CYL-1200/S Air Cooled

Description

CINA LASER’s CYL-1200/S Air Cooled 1.0μm single-mode group continuous fiber laser, adopts latest industry technology and the optimization design, with high electro-optical conversion efficiency, high lifetime, high safety and reliability. The unit with high-quality output beam and strong capability on resisting high-reflective, can be widely used in all kinds of materials of laser cutting, welding, punching, 3D printing and other high-end smart manufacturing.

CINA LASER, which is based on Internet technology, established a scientific after-sales service system. Each device has a unique identity code (the internal storage of original technology and material information). Can achieve remote online real-time monitoring; can provide users with equipment fault early warning and efficient technical support and good after-sales service.

CINA LASER’s products with high quality, high reliability and excellent cost performance, can meet the requirements of the customer diversification and personalized customization. It also with good after-sales service, is the ideal choice for system integrates and equipment manufacturers.

Features

◉ High wall plug efficiency, greatly reduce power consumption

◉ Strong capability on resisting high-reflective, suitable for different materials processing.

◉ Remote real-time monitoring.

◉ High lifetime, high safety and reliability.

◉ Can achieve personalized customization.

◉ Excellent after-sales service system.

◉ Excellent cost performance.

Applications

◉ Laser cutting.

◉ Laser welding.

◉ Laser cladding.

◉ Laser brazing.

◉ Laser thermolizing.

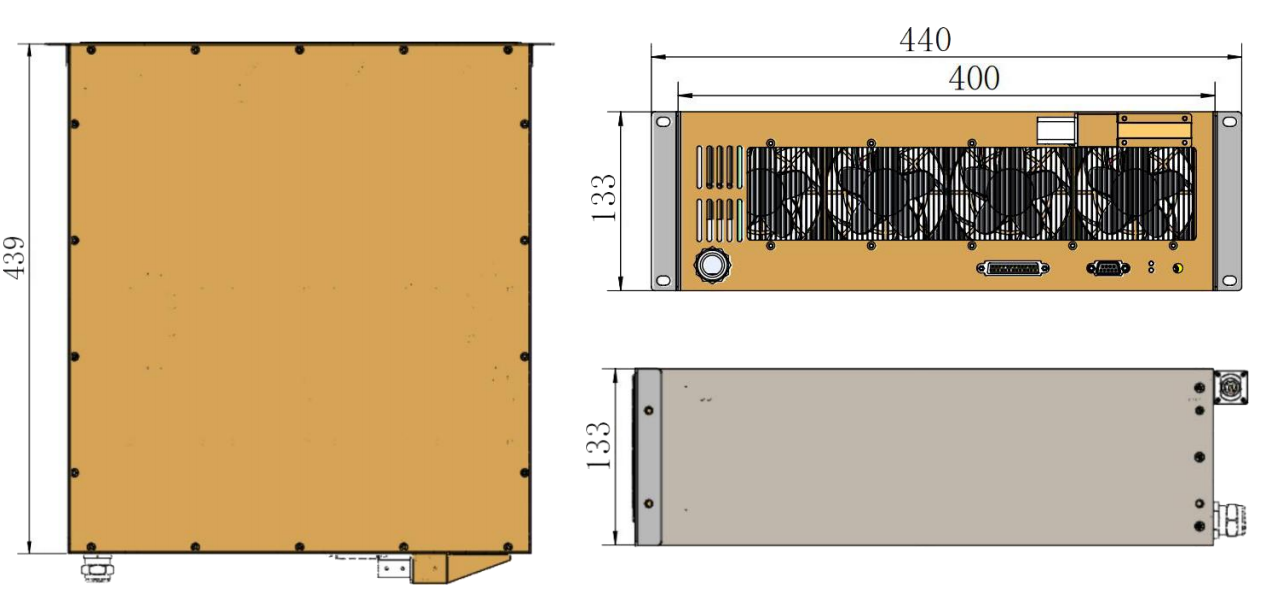

Size

Series

Technical Index

Performance	Unit	Min.	Typ.	Max.	Remarks
Central Wavelength	(nm)	1070	1080	1090
Spectral Bandwidth	(nm)		3	5	-3dB
Output Optical Power	(W)		1200
Short Time Power Stability	(%)	±1
Long Time Power Stability	(%)	±2
Laser Opening Time	(ms)	50~100
Laser Shutdown Time	(ms)	100~200
Power Regulation Range	(%)	10		100
Beam Quality	(M2)			1.2	QBH-20
Fiber Numerical Aperture（NA）				0.065	QBH-20
Modulation Frequency	(KHz)	5		20	100% Output
Red Light Power	(mw)	5		60
Output Connector			QBH
Output Fiber Core Diameter	(μm)	20、25、50			Customizable
Output Fiber Length	(m)		5		Customizable
Output Cable Bending Radius	(mm)	200
Work Model		Continuous/Modulation			Cw/Modulate
State Of Polarization		Random			Random
Communication Interface		Rs232/Ad /Super Terminal
Remote Communication		App			Customizable
Power Supply	(V)		220		Customizable
Power Consumption	(KW)			3.0	220 V, Single-Phase Three-Wire
Cooling Mode		Air Cooled
Working Ambient Temperature	(°C)	10		40
Working Environment Humidity	(%)	10		85
Storage Temperature	(°C)	-10		60
Structure		Rack
Weight/Dimensions	(Kg)	23	(W)×(L)×(H) (mm)		439x440x133
