CYL-800/S Air Cooled

1.0 μ M Continuous Fiber Laser
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail
Video Thumbnail

Description
CINA LASER’s CYL-800/S Air Cooled 1.0μm single-mode group continuous fiber laser, adopts latest industry technology and the optimization design, with high electro-optical conversion efficiency, high lifetime, high safety and reliability. The unit with high-quality output beam and strong capability on resisting high-reflective, can be widely used in all kinds of materials of laser cutting, welding, punching, 3D printing and other high-end smart manufacturing.
CINA LASER, which is based on Internet technology, established a scientific after-sales service system. Each device has a unique identity code (the internal storage of original technology and material information). Can achieve remote online real-time monitoring; can provide users with equipment fault early warning and efficient technical support and good after-sales service.
CINA LASER’s products with high quality, high reliability and excellent cost performance, can meet the requirements of the customer diversification and personalized customization. It also with good after-sales service, is the ideal choice for system integrates and equipment manufacturers.
Features
 High wall plug efficiency, greatly reduce power consumption
 Strong capability on resisting high-reflective, suitable for different materials processing.
 Remote real-time monitoring.
 High lifetime, high safety and reliability.
 Can achieve personalized customization.
 Excellent after-sales service system.
 Excellent cost performance
Applications
 Laser cutting.
 Laser welding.
 Laser cladding.
 Laser brazing.
 Laser thermolizing.

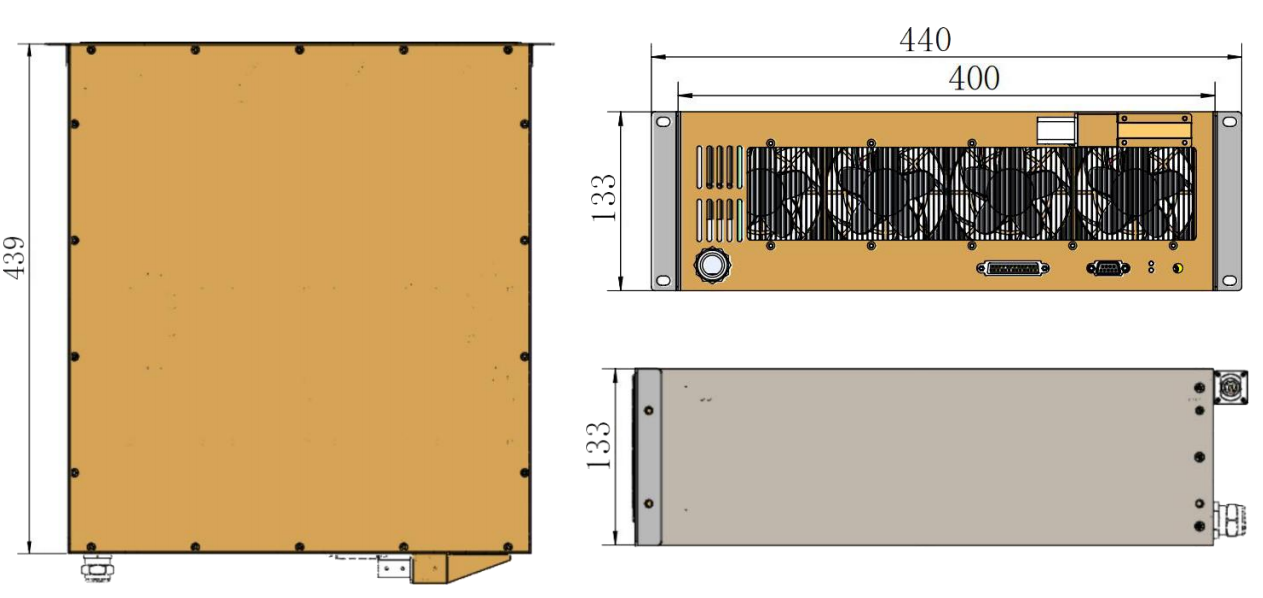

Size
Series
Technical Index
Performance Unit Min. Typ. Max. Remarks
Central Wavelength (nm) 1070 1080 1090
Spectral Bandwidth (nm)   3 5 -3dB
Output Optical Power (W)   800
Short Time Power Stability (%) ±1
Long Time Power Stability (%) ±2
Laser Opening Time (ms) 50~100
Laser Shutdown Time (ms) 100~200
Power Regulation Range (%) 10   100
Beam Quality (M2)     1.2 QBH-20
Fiber Numerical Aperture(NA)       0.065 QBH-20
Modulation Frequency (KHz) 5   20 100% Output
Red Light Power (mw) 5   60
Output Connector     QBH
Output Fiber Core Diameter (μm) 20、25、50 Customizable
Output Fiber Length (m)   5   Customizable
Output Cable Bending Radius (mm) 200
Work Model   Continuous/Modulation CW/Modulate
State Of Polarization   Random Random
Communication Interface   Rs232/Ad /Super Terminal
Remote Communication   App Customizable
Power Supply     220   Customizable
Power Consumption (KW)     3.0 220 V, Single-Phase Three-Wire
Cooling Mode   Air Cooled
Working Ambient Temperature (°C) 10   40
Working Environment Humidity (%) 10   85
Storage Temperature (°C) -10   60
Structure   Rack
Weight/Dimensions (Kg) 23 (W)×(L)×(H) (mm) 439x440x133

Model Explanation
