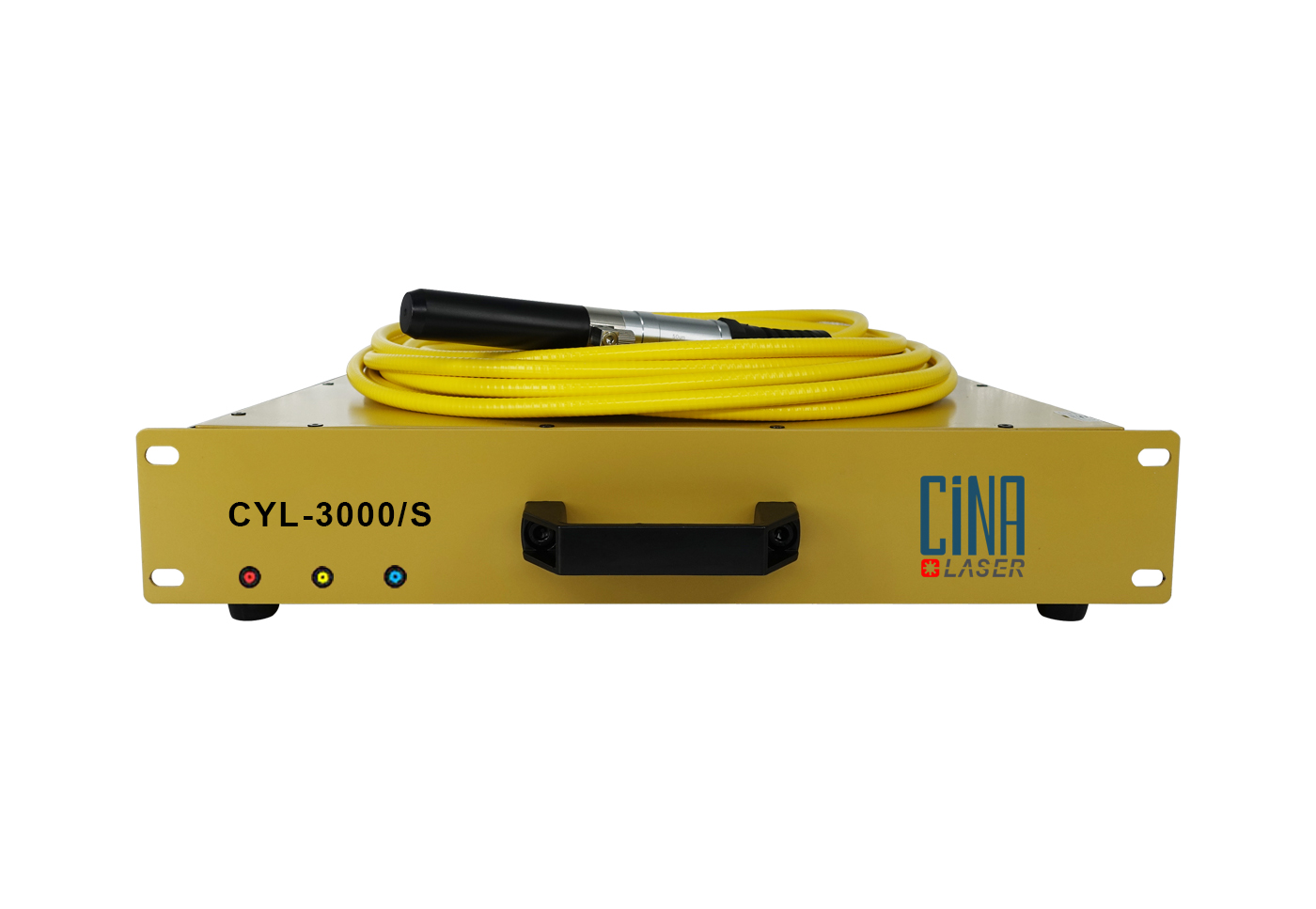

CYL-3000/S

Description

CINA Laser’s CYL-3000/S 1.0μm single-mode group continuous fiber laser, adopts latest industry technology and the optimization design, with high electro-optical conversion efficiency, high lifetime, high safety and reliability. The unit with high-quality output beam and strong capability on resisting high-reflective, can be widely used in all kinds of materials of laser cutting, welding, punching, 3D printing and other high-end smart manufacturing.

CINA Laser, which is based on Internet technology, established a scientific after-sales service system. Each device has a unique identity code (the internal storage of original technology and material information). Can achieve remote online real-time monitoring; can provide users with equipment fault early warning and efficient technical support and good after-sales service.

CINA Laser’s products with high quality, high reliability and excellent cost performance, can meet the requirements of the customer diversification and personalized customization. It also with good after-sales service, is the ideal choice for system integrates and equipment manufacturers.

Features

◉ High electro-optical conversion efficiency, greatly reduced the power consumption

◉ Strong capability on resisting high-reflective, suitable for different materials processing.

◉ Remote real-time monitoring.

◉ High lifetime, high safety and reliability.

◉ Can achieve personalized customization.

◉ Excellent after-sales service system.

◉ Excellent cost performance

Applications

◉ Laser cutting.

◉ Laser welding.

◉ Laser cladding.

◉ Laser brazing.

◉ Laser thermolizing.

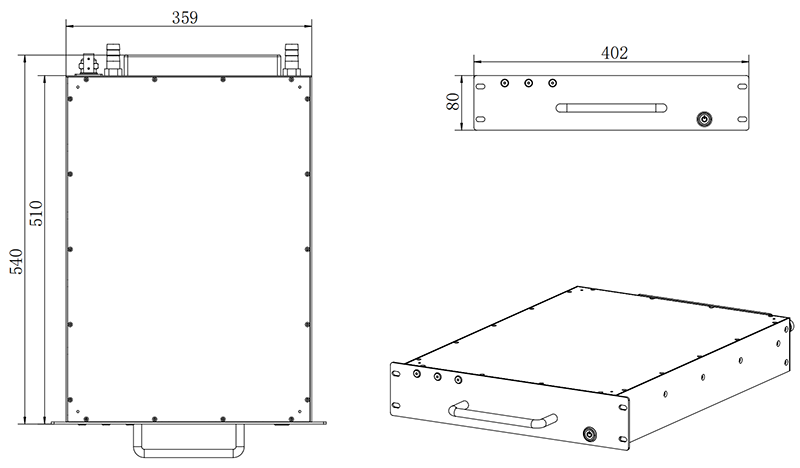

Size

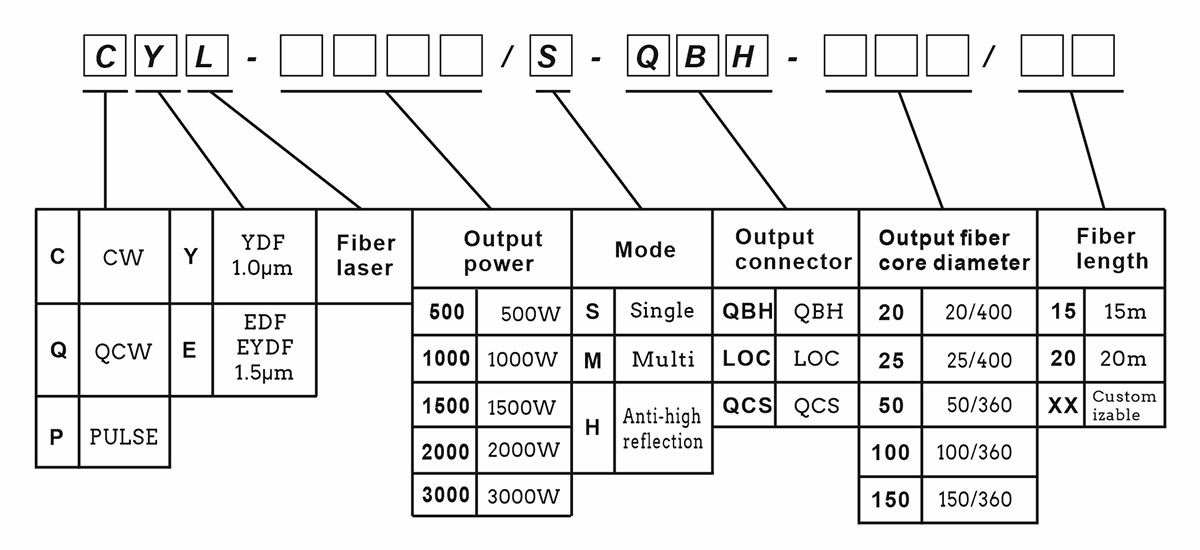

Series

Technical Index

Performance			Min.	Typ.	Max.	Supplement
Optic Feature	Central wavelength	(nm)	1070	1080	1090
	Spectral bandwidth	(nm)		3	5	-3dB
	Output optical power	(W)		3000
	Power ADJ. range	(%)	10		100
	Output power stability	(%)		1	1.5	100% continuous ＞1h
	Output power stability	(%)		2	3	100% continuous ＞24h
	Beam quality	(BPP)			1.3	QBH-20/400
	Beam quality	(BPP)			2.8	QBH-50/360
	Modulation frequency.	(KHz)			20	100% output
	Glow power	(mW)	0.3		1.0
Output Feature	Output connector			QBH		Customize
	Output fiber core-diameter	(μm)		20	100
	Output fiber length	(m)		15		Customize
	Output fiber l bending radius	(mm)	200
	Working mode		Continuous modulation			CW/Modulate
	Polarization state		Random			Random
Electrical cooling Feature	Telecommunication port		RS232 / AD / Super terminal
	Remote telecommunication		APP			Customize
	Power supply	(V)	340	380	420	Three phase five wire
	Power consumption	(KW)			8.5
	Cooling method		Water-cooling			Circumscribed
	Coolant temp.	(°C)	21		25
	Coolant flow	(L/min)		40
General Feature	Working environment temp.	(°C)	10		40
	Working environment humidity	(%)	10		85
	Storage temp.	(°C)	-10		60
	Weight	(kg)		28.5
	Structure		Machine cabinet
	Size (W) × (L) × (H)	(mm)	402 (359)x540x80			(W)×(L) with Handle)×(H)
